E37F501CPN682MEJ1M
lmages are for reference only.Payment Methods
Delivery Services
6800 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 15mOhm @ 120Hz 5000 Hrs @ 85°C
E37F501CPN682MEJ1M
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | U37F |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 15mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 21.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 30.315 A @ 10 kHz |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 7.165" (182.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
|
|
|

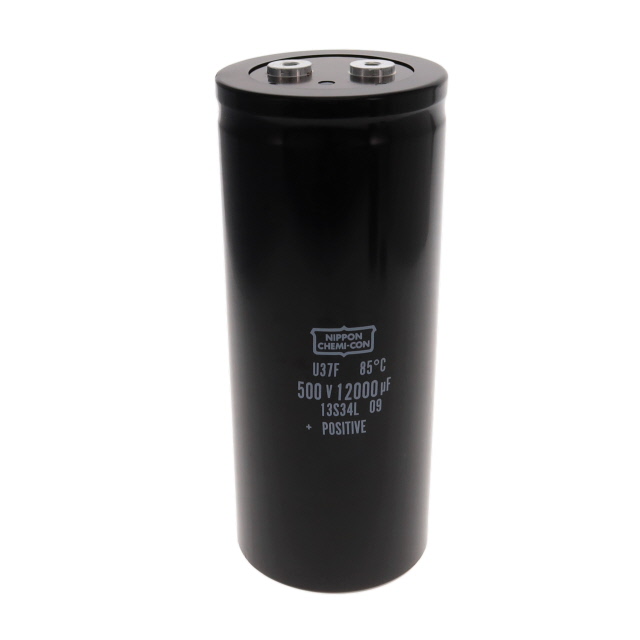

| Part Number | E37F501CPN682MFE3M | E37F501CGN122KCA54 | E37F501CPN103MFK0M | E37F501CPN123MFM9M |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | CAP ALUM 6800UF 20% 500V SCREW | CAP ALUM 1.2MF 10% 500V SCREW CH | CAP ALUM 10000UF 20% 500V SCREW | CAP ALUM 12000UF 20% 500V SCREW |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
