E3SB24E004000E
lmages are for reference only.E3SB24E004000E
XTAL 3225 24MHZ, 18PF/10/10/-30+
Datasheet4-SMD, No Lead
98,468 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
24 MHz ±10ppm Crystal 18pF 50 Ohms 4-SMD, No Lead
E3SB24E004000E
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Hosonic Electronic Co., Ltd |
| Series | E3SB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 24 MHz |
| Frequency Stability | ±10ppm |
| Frequency Tolerance | ±10ppm |
| Load Capacitance | 18pF |
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -30°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.030" (0.75mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |

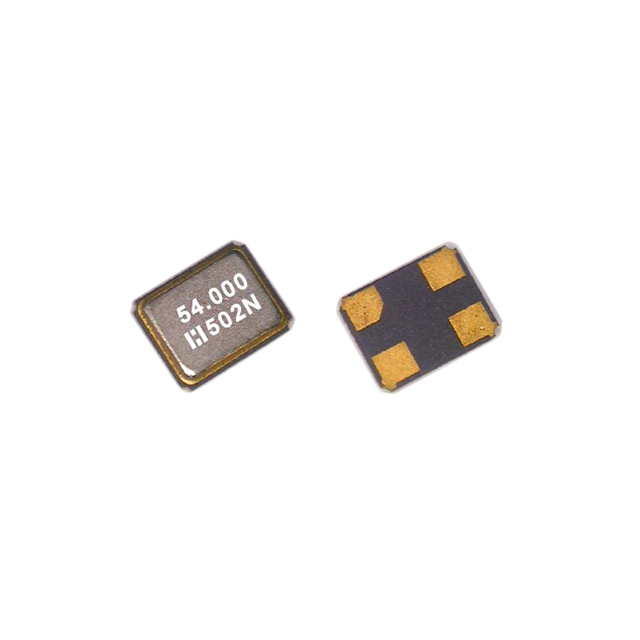

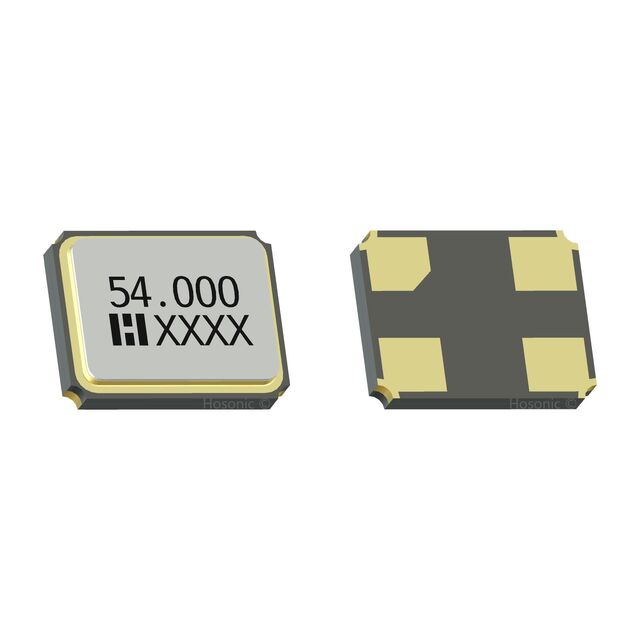

| Part Number | E3SB24E004000E | E3SB24E00000QE | E3SB24E00000QE | E3SB24E001803E |
| Manufacturer | Hosonic Electronic Co., Ltd | Hosonic Electronic Co., Ltd | Hosonic Electronic Co., Ltd | Hosonic Electronic Co., Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL 3225 24MHZ, 18PF/10/10/-30+ | XTAL 3225 24MHZ, 10PF | XTAL 3225 24MHZ, 10PF | XTAL 3225 24MHZ 20PPM |
| Series | Hosonic Electronic Co., Ltd | Hosonic Electronic Co., Ltd | Hosonic Electronic Co., Ltd | Hosonic Electronic Co., Ltd |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
