Product CatalogPart Number
EC12D1564402
Manufacturer
Alps AlpineDescription
INSULATED SHAFT ENCODERS
Datasheet
DatasheetPackage
-
In Stock
15,591 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EC12D1564402
EC12D1564402
lmages are for reference only.Payment Methods
Delivery Services

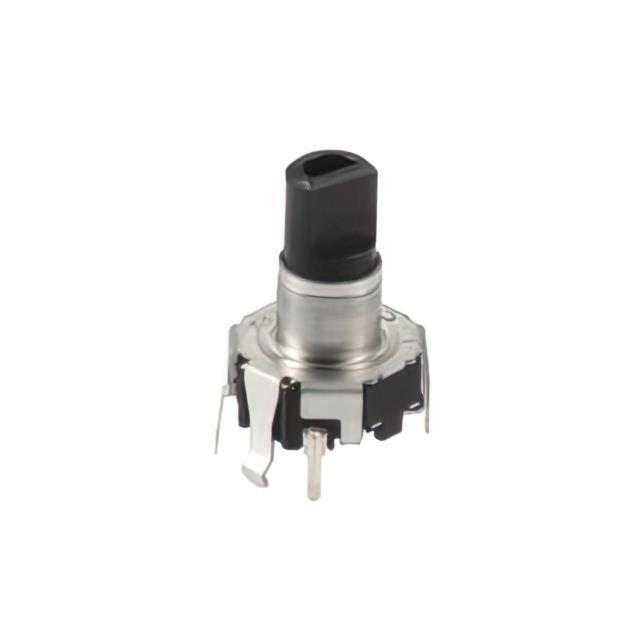

Rotary Encoder Incremental 15 Quadrature (Incremental) Vertical
Quick Inquiry
EC12D1564402
Specifications
| Category | Sensors, Transducers - Encoders - |
| Manufacturer | Alps Alpine |
| Series | EC12D |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Encoder Type | Incremental |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 15 |
| Voltage - Supply | 5V |
| Actuator Type | 12mm Dia Knurled End |
| Detent | Yes |
| Built in Switch | Yes |
| Mounting Type | PCB, Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Rotational Life (Cycles Min) | 30K |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
