EC3SCW-48S3V3N

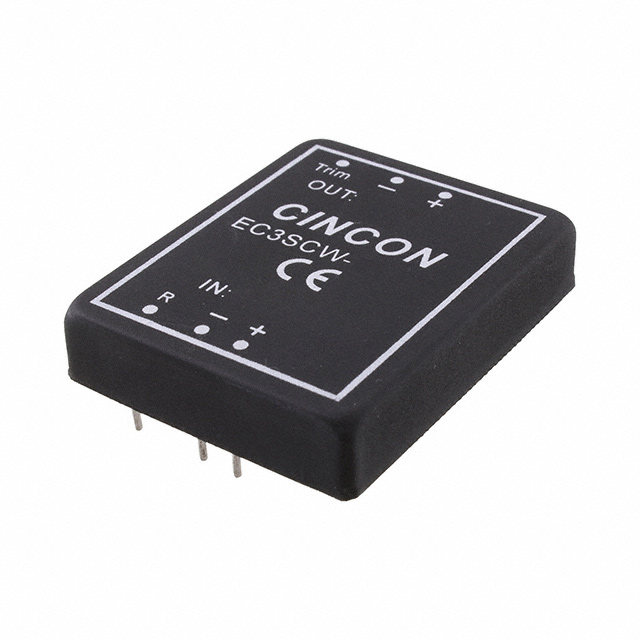

lmages are for reference only.EC3SCW-48S3V3N
DC DC CONVERTER 3.3V 25W
Datasheet8-DIP Module, 7 Leads
43,994 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 7.5A 18V - 75V Input
EC3SCW-48S3V3N
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Cincon Electronics Co. LTD |
| Series | EC3SCW (30W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 7.5A |
| Power (Watts) | 25 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 88% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 7 Leads |
| Size / Dimension | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | CE |
| Standard Number | 60950-1 |
| Base Product Number | EC3SCW |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
|
|
| Part Number | EC3SCW-48S3V3 | EC3SCW-48S05 | EC3SCW-48S05 | EC3SCW-48S05 |
| Manufacturer | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 3.3V 25W | DC DC CONVERTER 5V 30W | DC DC CONVERTER 5V 30W | DC DC CONVERTER 5V 30W |
| Series | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| Packaging | Tube | Tube | Tube | Tube |
