EC5BE11AT

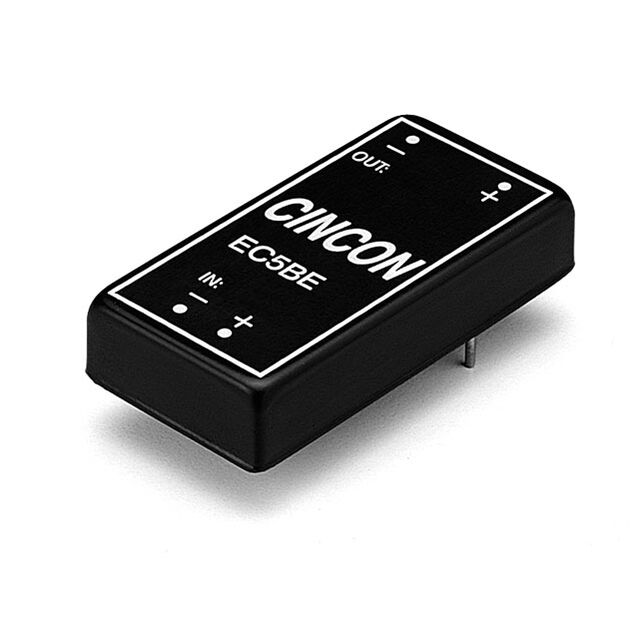

lmages are for reference only.EC5BE11AT
LOW POWER DC-DC I/P:18-36VDC O/P
Datasheet6-DIP Module
62,737 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 3A 18V - 36V Input
EC5BE11AT
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Cincon Electronics Co. LTD |
| Series | EC5BE (15W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Power (Watts) | 15 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -25°C ~ 71°C |
| Efficiency | 80% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | CE, cURus |
| Standard Number | 60950-1 |
| Base Product Number | - |
| Voltage - Isolation | 500 V |
| Product Attribute |  |
 |
 |
 |
| Part Number | EC5BE11A | EC5BE11 | EC5BE11T | EC5BE12 |
| Manufacturer | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 5V 15W | DC DC CONVERTER 5V 15W | DC DC CONVERTER 5V 15W | DC DC CONVERTER 12V 15W |
| Series | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| Packaging | Tube | Tube | Tube | Tube |
