ECE-A1AKG330
lmages are for reference only.ECE-A1AKG330
CAP ALUM 33UF 20% 10V RADIAL TH
DatasheetRadial, Can
54,562 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
33 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
ECE-A1AKG330
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | KG |
| Packaging | Bulk |
| RoHS Status | |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 70 mA @ 100 kHz |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | ECE-A1 |
| Impedance | 5 Ohms |
| Product Attribute |  |
 |
|
|

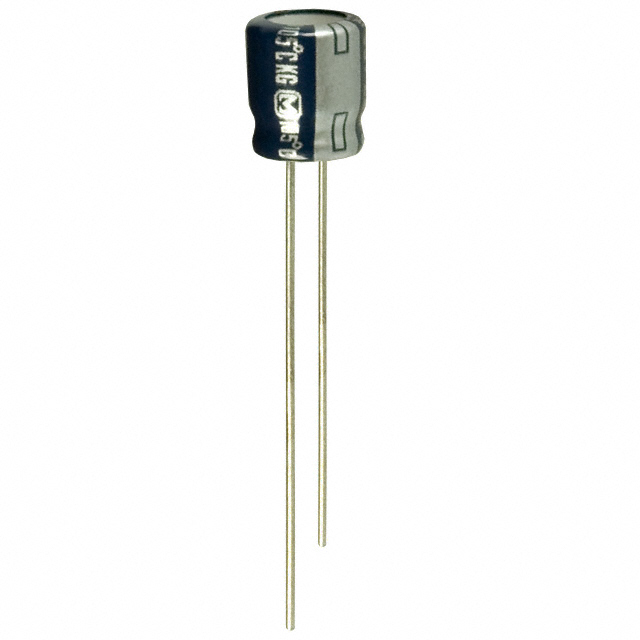

| Part Number | ECE-A1AKG101 | ECE-A1AKG220 | ECE-A1AKG470 | ECE-A1AKG680 |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ||||
| Description | CAP ALUM 100UF 20% 10V RADIAL TH | CAP ALUM 22UF 20% 10V RADIAL TH | CAP ALUM 47UF 20% 10V RADIAL TH | CAP ALUM 68UF 20% 10V RADIAL TH |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
