ECE-T2GP152FA
lmages are for reference only.ECE-T2GP152FA
CAP ALUM 1500UF 20% 400V SNAP TH
DatasheetRadial, Can - Snap-In - 4 Lead
91,525 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1500 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 4 Lead 122mOhm @ 120Hz 3000 Hrs @ 85°C
ECE-T2GP152FA
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | T-UP |
| Packaging | Bulk |
| RoHS Status | |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 122mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.7 A @ 10 kHz |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 3.150" (80.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
| Base Product Number | ECE-T2 |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

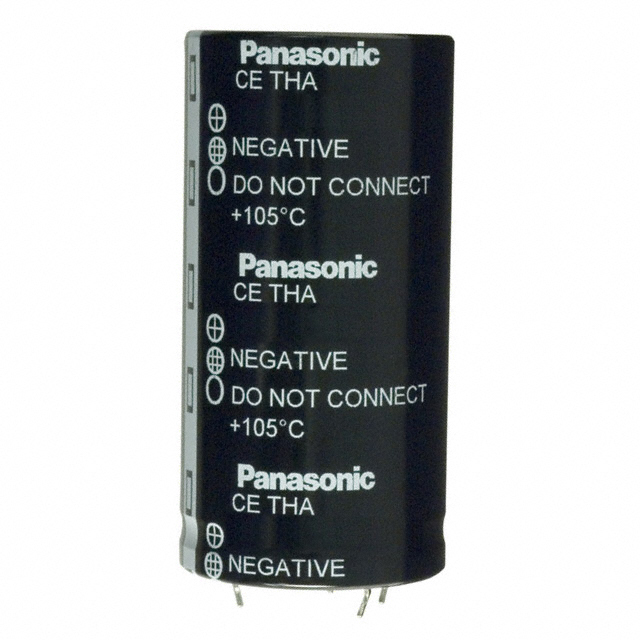

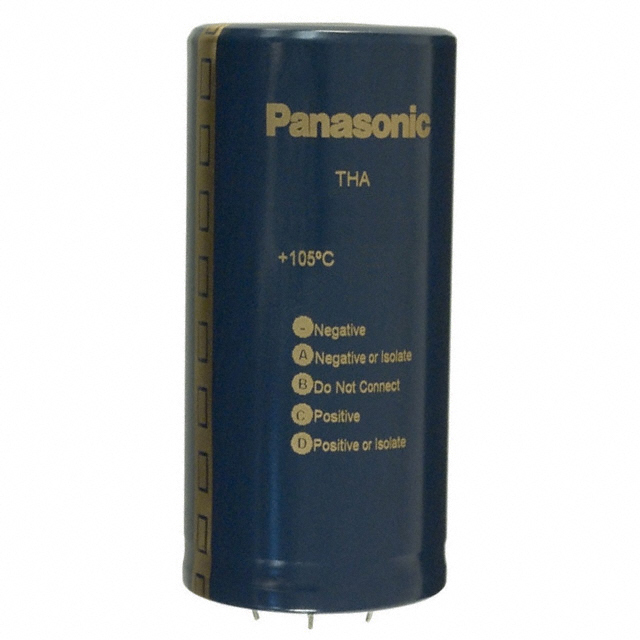

| Part Number | ECE-T2GA102EA | ECE-T2GA102FA | ECE-T2GA122FA | ECE-T2GA182FA |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ||||
| Description | CAP ALUM 1000UF 20% 400V SNAP TH | CAP ALUM 1000UF 20% 400V SNAP TH | CAP ALUM 1200UF 20% 400V SNAP TH | CAP ALUM 1800UF 20% 400V SNAP TH |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
