ECLAMP2384K.TCT
lmages are for reference only.ECLAMP2384K.TCT
FILTER RC(PI) 200 OHM/12PF SMD
Datasheet8-UFDFN Exposed Pad
90,719 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RC (Pi) EMI Filter 2nd Order Low Pass 4 Channel R = 200Ohms, C = 12pF 8-UFDFN Exposed Pad
ECLAMP2384K.TCT
| Category | Filters - EMI-RFI Filters LC-RC Networks - |
| Manufacturer | Semtech Corporation |
| Series | EMIClamp® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Center / Cutoff Frequency | - |
| Attenuation Value | 30dB @ 800MHz ~ 2.7GHz |
| Resistance - Channel (Ohms) | 200 |
| Current | - |
| Values | R = 200Ohms, C = 12pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFDFN Exposed Pad |
| Size / Dimension | 0.067" L x 0.051" W (1.70mm x 1.30mm) |
| Height | 0.022" (0.55mm) |
| Number of Channels | 4 |
| Base Product Number | ECLAMP2384 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |

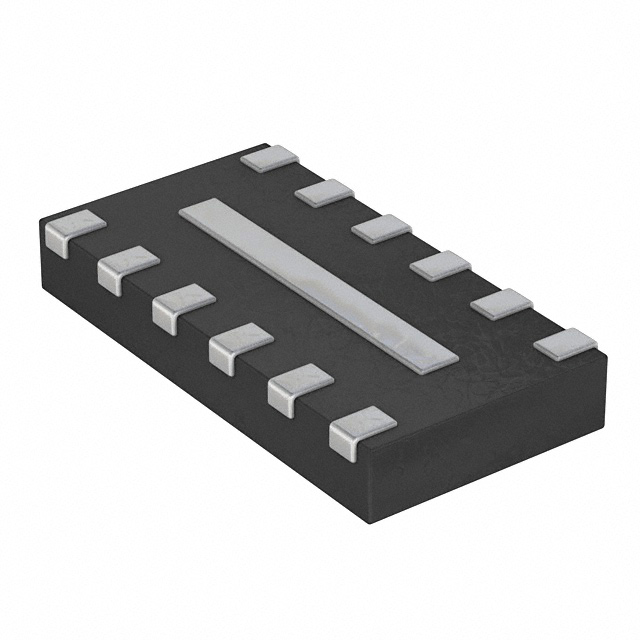

| Part Number | ECLAMP2384K.TCT | ECLAMP2384P.TCT | ECLAMP2384P.TCT | ECLAMP2386K.TCT |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FILTER RC(PI) 200 OHM/12PF SMD | FILTER RC(PI) 200 OHM/12PF SMD | FILTER RC(PI) 200 OHM/12PF SMD | FILTER RC(PI) 200 OHM/12PF SMD |
| Series | EMIClamp® | EMIClamp® | EMIClamp® | EMIClamp® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
