ECO-S2GP820AA
lmages are for reference only.ECO-S2GP820AA
CAP ALUM 82UF 20% 400V SNAP TH
DatasheetRadial, Can - Snap-In
21,017 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
82 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2.022Ohm @ 120Hz 2000 Hrs @ 85°C
ECO-S2GP820AA
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | TS-UP |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 2.022Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 830 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.16 A @ 100 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | ECO-S2 |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

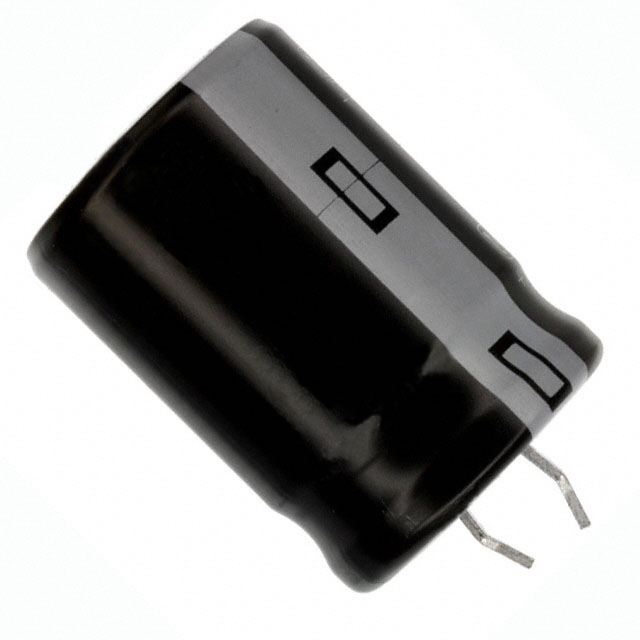

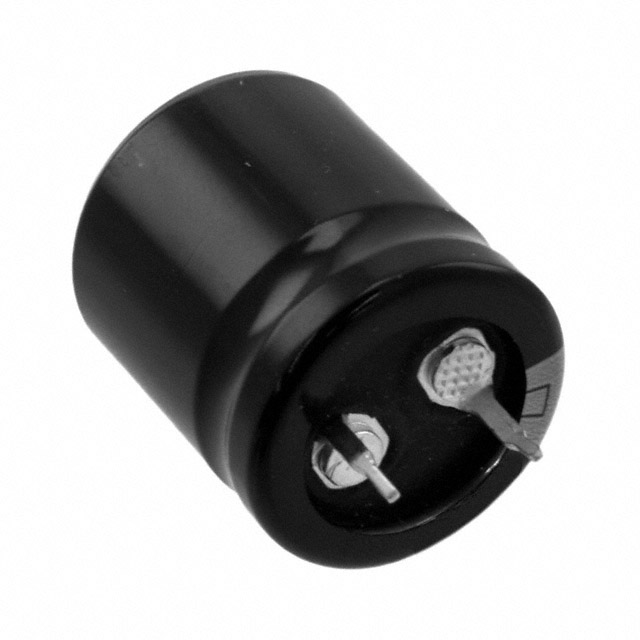

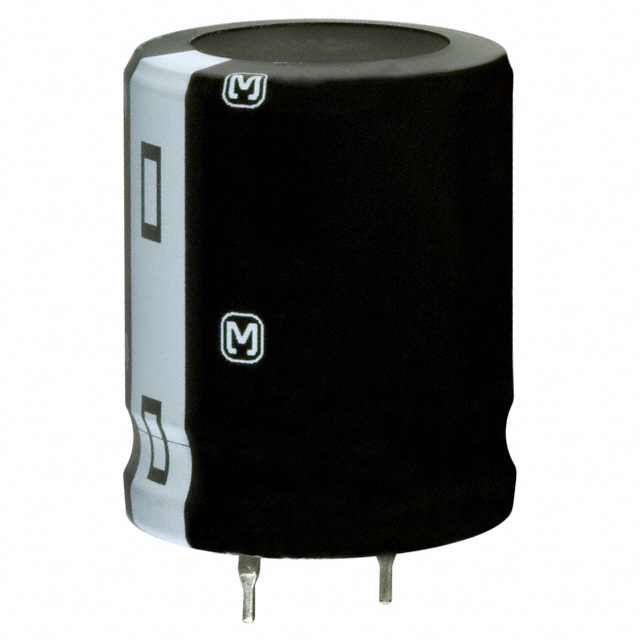

| Part Number | ECO-S2GP820BA | ECO-S2GA101BA | ECO-S2GA101CA | ECO-S2GA121BA |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | RoHS non-compliant | |||
| Description | CAP ALUM 82UF 20% 400V SNAP TH | CAP ALUM 100UF 20% 400V SNAP TH | CAP ALUM 100UF 20% 400V SNAP TH | CAP ALUM 120UF 20% 400V SNAP TH |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
