ECQ-B1223JF
lmages are for reference only.ECQ-B1223JF
CAP FILM 0.022UF 5% 100VDC RAD
DatasheetRadial
78,551 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.022 µF Film Capacitor 100V Polyester Radial
ECQ-B1223JF
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | ECQ-B(F) |
| Packaging | Bulk |
| RoHS Status | |
| Capacitance | 0.022 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyester |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.295" L x 0.177" W (7.50mm x 4.50mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | ECQ-B |
| Product Attribute |  |
 |
|
 |

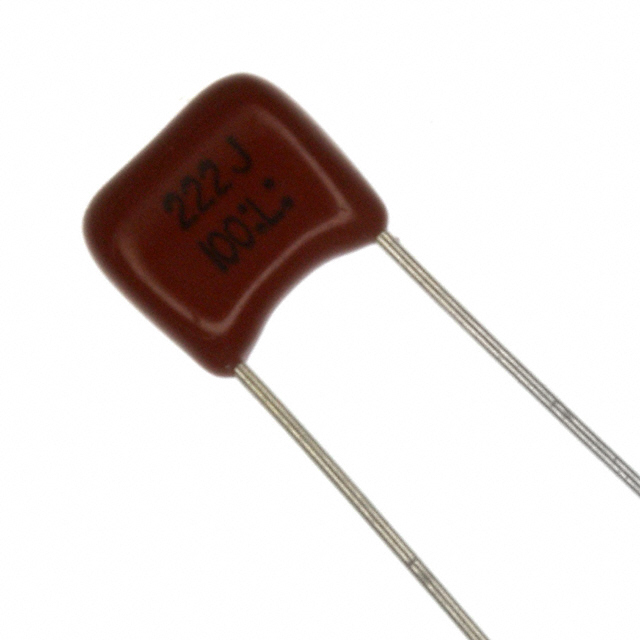

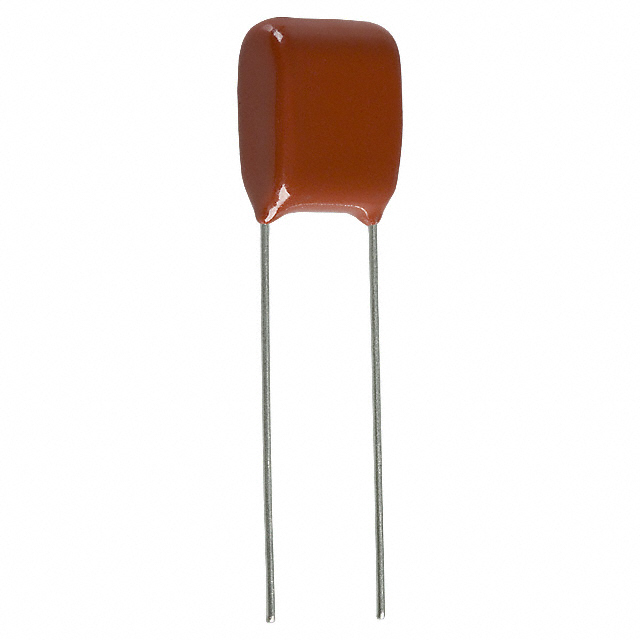

| Part Number | ECQ-B1221JF | ECQ-B1222JF | ECQ-B1222JF | ECQ-B1224JF |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ||||
| Description | CAP FILM 220PF 5% 100VDC RADIAL | CAP FILM 2200PF 5% 100VDC RADIAL | CAP FILM 2200PF 5% 100VDC RADIAL | CAP FILM 0.22UF 5% 100VDC RADIAL |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
