ECQ-E2563KF

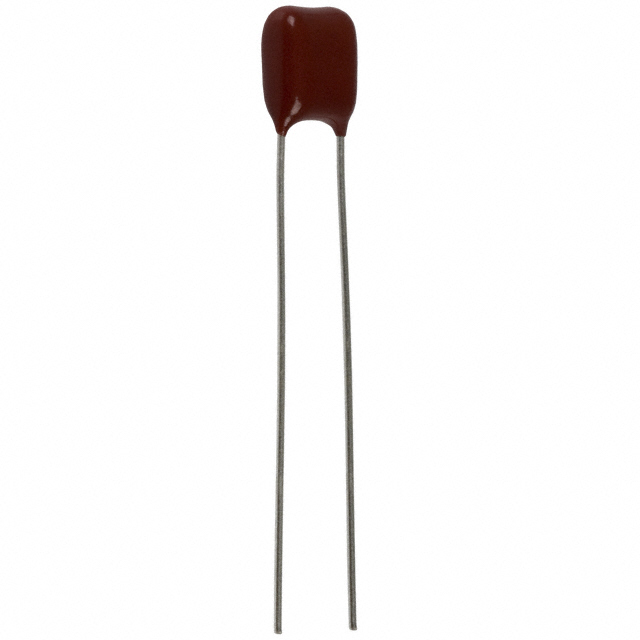

lmages are for reference only.ECQ-E2563KF
CAP FILM 0.056UF 10% 250VDC RAD
DatasheetRadial
41,741 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.056 µF Film Capacitor 250V Polyester, Metallized Radial
ECQ-E2563KF
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | ECQ-E(F) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.056 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polyester, Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.406" L x 0.189" W (10.30mm x 4.80mm) |
| Height - Seated (Max) | 0.350" (8.90mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | ECQ-E2563 |
| Product Attribute |  |
 |
 |
|
| Part Number | ECQ-E2563KB | ECQ-E2563KB3 | ECQ-E2563KBB | ECQ-E2563KF |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.056UF 10% 250VDC RAD | CAP FILM 0.056UF 10% 250VDC RAD | CAP FILM 0.056UF 10% 250VDC RAD | CAP FILM 0.056UF 10% 250VDC RAD |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Tape & Box (TB) | Bulk | Bulk |
