ECQ-UBAF154K
lmages are for reference only.ECQ-UBAF154K
CAP FILM 0.15UF 10% 300VAC RADIA
DatasheetRadial
96,433 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.15 µF Film Capacitor 300V Polypropylene (PP), Metallized Radial
ECQ-UBAF154K
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | ECQUB |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.15 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.728" L x 0.354" W (18.50mm x 9.00mm) |
| Height - Seated (Max) | 0.728" (18.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X1 |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | ECQ-UBAF154 |
| Product Attribute |  |
 |
 |
 |

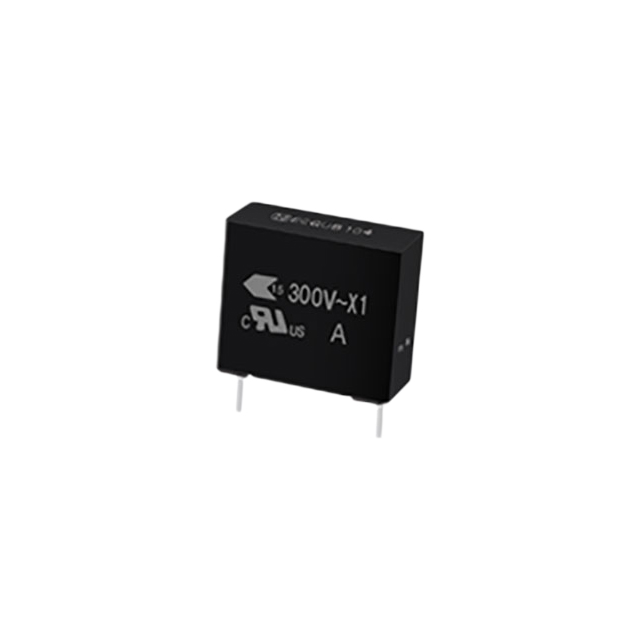

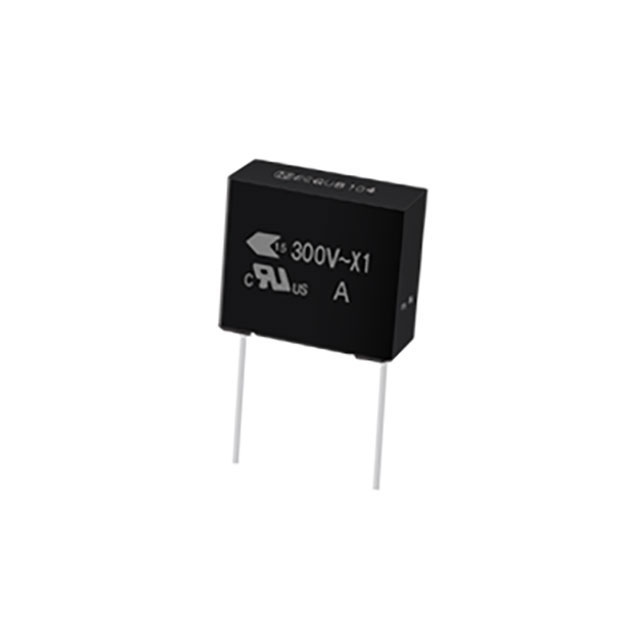

| Part Number | ECQ-UBAF154KA | ECQ-UBAF154M | ECQ-UBAF154MA | ECQ-UBAF102K |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.15UF 10% 300VAC RADIA | CAP FILM 0.15UF 20% 300VAC RADIA | CAP FILM 0.15UF 20% 300VAC RADIA | CAP FILM 0.001UF 10% 300VAC RADI |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
