ECQ-UBAF222VA
lmages are for reference only.ECQ-UBAF222VA
CAP FILM 0.0022UF 20% 300VAC RAD
DatasheetRadial
23,588 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2200 pF Film Capacitor 300V Polypropylene (PP), Metallized Radial
ECQ-UBAF222VA
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | ECQUB |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 2200 pF |
| Tolerance | ±20% |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.602" L x 0.197" W (15.30mm x 5.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X1, Y2 |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | ECQ-UBAF222 |
| Product Attribute |  |
 |
 |
 |

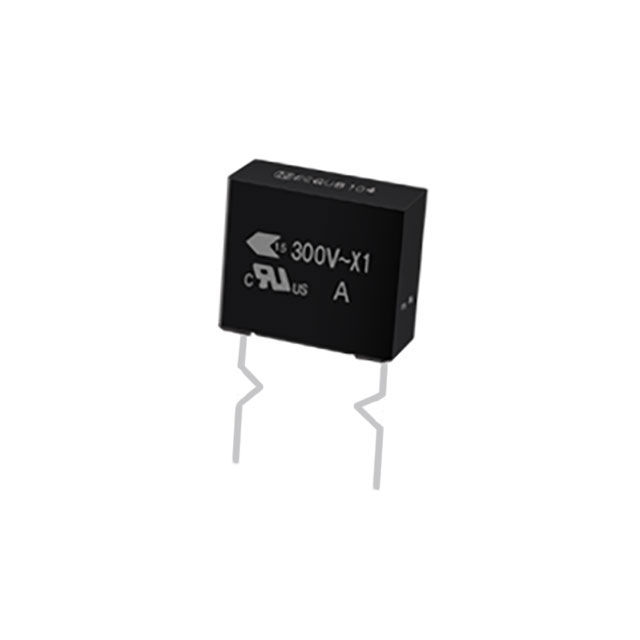

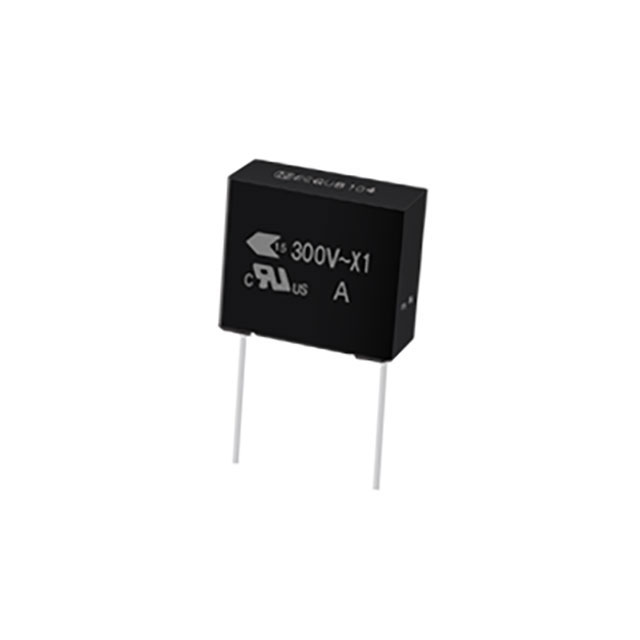

| Part Number | ECQ-UBAF222V1 | ECQ-UBAF222V5 | ECQ-UBAF222VB | ECQ-UBAF222K |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.0022UF 20% 300VAC RAD | CAP FILM 0.0022UF 10% 300VAC RAD | CAP FILM 0.0022UF 10% 300VAC RAD | CAP FILM 0.0022UF 10% 300VAC RAD |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
