ECQ-V1H564JL5
lmages are for reference only.ECQ-V1H564JL5
CAP FILM 0.56UF 5% 50VDC RADIAL
DatasheetRadial
40,358 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.56 µF Film Capacitor 50V Polyester, Metallized - Stacked Radial
ECQ-V1H564JL5
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | ECQ-V |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Capacitance | 0.56 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polyester, Metallized - Stacked |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.287" L x 0.228" W (7.30mm x 5.80mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | ECQ-V1 |
| Product Attribute |  |
|
 |
|

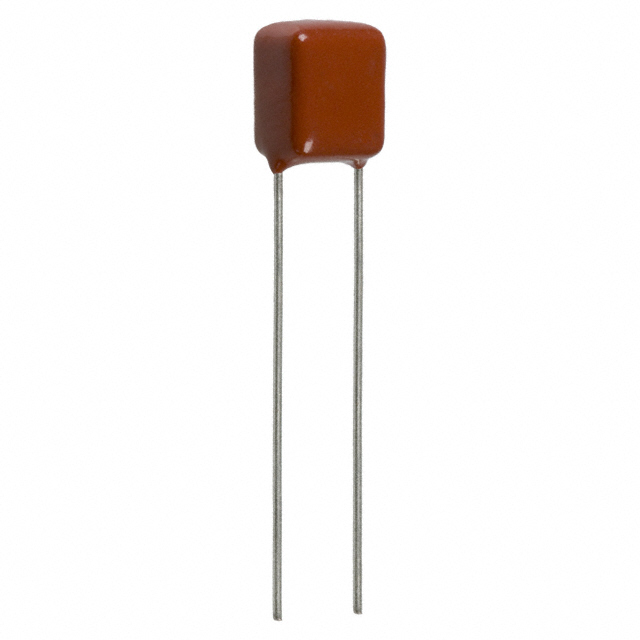

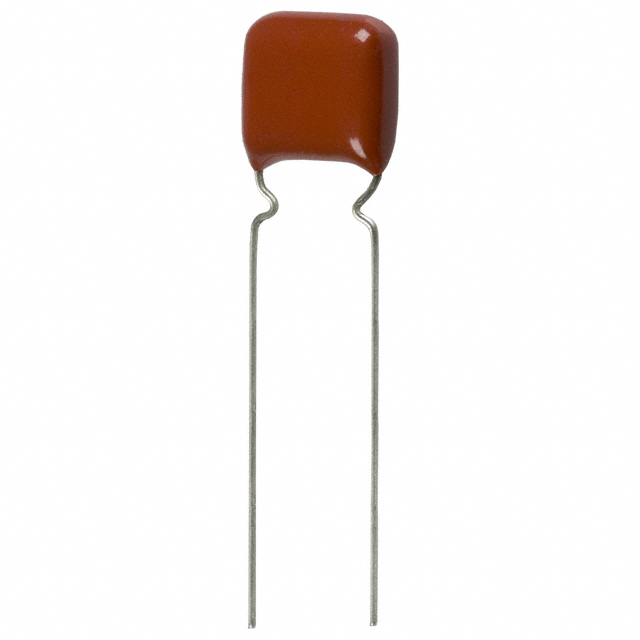

| Part Number | ECQ-V1H564JL | ECQ-V1H564JL2 | ECQ-V1H564JL3 | ECQ-V1H564JL9 |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ||||
| Description | CAP FILM 0.56UF 5% 50VDC RADIAL | CAP FILM 0.56UF 5% 50VDC RADIAL | CAP FILM 0.56UF 5% 50VDC RADIAL | CAP FILM 0.56UF 5% 50VDC RADIAL |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Tape & Box (TB) | Tape & Box (TB) | Tape & Reel (TR) |
