ECS-.400-12.5-13X
lmages are for reference only.Payment Methods
Delivery Services

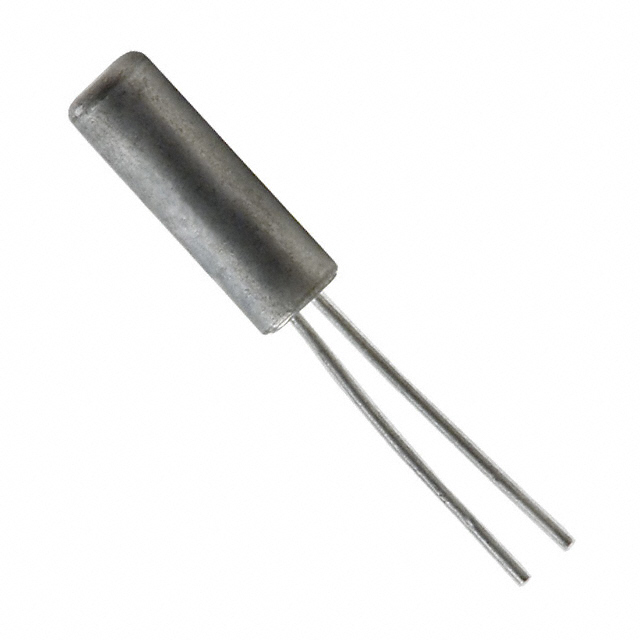

40 kHz ±30ppm Crystal 12.5pF 50 kOhms Cylindrical Can, Radial
ECS-.400-12.5-13X
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | ECS Inc. |
| Series | ECS-31X |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | kHz Crystal (Tuning Fork) |
| Frequency | 40 kHz |
| Frequency Stability | - |
| Frequency Tolerance | ±30ppm |
| Load Capacitance | 12.5pF |
| ESR (Equivalent Series Resistance) | 50 kOhms |
| Operating Mode | Fundamental |
| Operating Temperature | -10°C ~ 60°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Cylindrical Can, Radial |
| Size / Dimension | 0.083" Dia x 0.244" L (2.10mm x 6.20mm) |
| Height - Seated (Max) | - |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |
| Part Number | ECS-.400-12.5-13 | ECS-.400-12.5-13 | ECS-.400-12.5-13X | ECS-.320-12.5-13 |
| Manufacturer | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | CRYSTAL 40.0000KHZ 12.5PF TH | CRYSTAL 40.0000KHZ 12.5PF TH | CRYSTAL 40.0000KHZ 12.5PF TH | CRYSTAL 32.0000KHZ 12.5PF TH |
| Series | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
