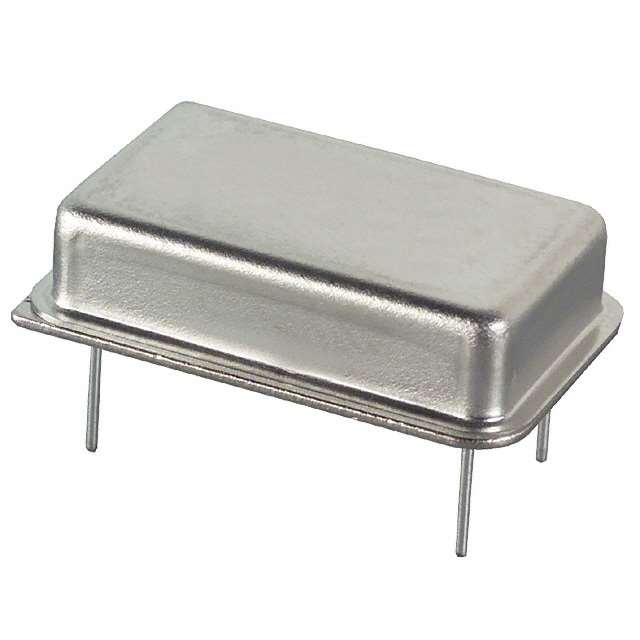

1 MHz XO (Standard) TTL Oscillator 5V 14-DIP, 4 Leads (Full Size, Metal Can)
ECS-100AX-010
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | ECS Inc. |
| Series | ECS-100X |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 1 MHz |
| Function | - |
| Output | TTL |
| Voltage - Supply | 5V |
| Frequency Stability | ±100ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | 0°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 15mA |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP, 4 Leads (Full Size, Metal Can) |
| Size / Dimension | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| Height - Seated (Max) | 0.200" (5.08mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ECS-100AX-012.2 | ECS-100AX-018 | ECS-100AX-020 | ECS-100AX-035 |
| Manufacturer | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC XO 1.2288MHZ TTL TH | XTAL OSC XO 1.8432MHZ TTL TH | XTAL OSC XO 2.0000MHZ TTL TH | XTAL OSC XO 3.579545MHZ TTL TH |
| Series | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| Packaging | Bulk | Bulk | Tube | Bulk |
