ECS-TXO-20CSMV4-390-CN-TR

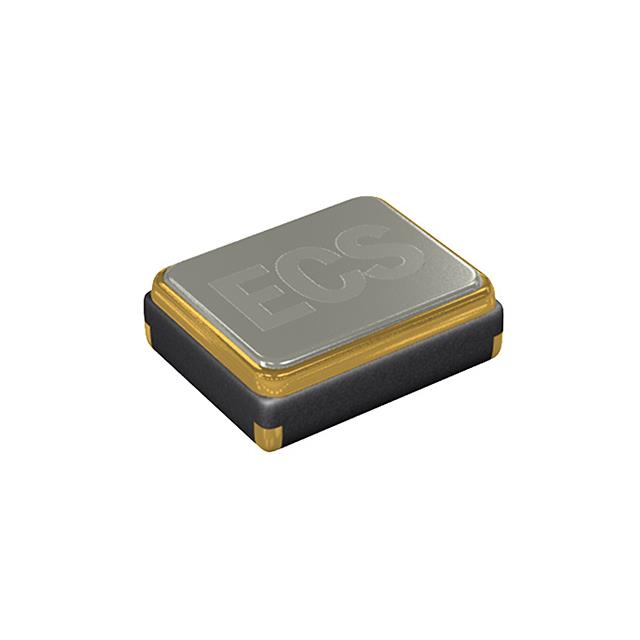

lmages are for reference only.Payment Methods
Delivery Services
39 MHz TCXO Clipped Sine Wave Oscillator 1.8V, 2.5V, 3.3V 4-SMD, No Lead
ECS-TXO-20CSMV4-390-CN-TR
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | ECS Inc. |
| Series | ECS-TXO-20CSMV4 MultiVolt™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | TCXO |
| Frequency | 39 MHz |
| Function | - |
| Output | Clipped Sine Wave |
| Voltage - Supply | 1.8V, 2.5V, 3.3V |
| Frequency Stability | ±1.5ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 2mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | ECS-TXO-20CSMV4-192-AN-TR | ECS-TXO-20CSMV4-250-AN-TR | ECS-TXO-20CSMV4-250-AN-TR | ECS-TXO-20CSMV4-260-AN-TR |
| Manufacturer | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC TCXO 19.2000MHZ CLPSW | XTAL OSC TCXO 25.0000MHZ CLPSW | XTAL OSC TCXO 25.0000MHZ CLPSW | XTAL OSC TCXO 26.0000MHZ CLPSW |
| Series | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
