ECW-F2474HAB
lmages are for reference only.ECW-F2474HAB
CAP FILM 0.47UF 3% 250VDC RADIAL
DatasheetRadial
55,506 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.47 µF Film Capacitor 250V Polypropylene (PP), Metallized Radial
ECW-F2474HAB
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | ECW-F(A) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.47 µF |
| Tolerance | ±3% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.512" L x 0.331" W (13.00mm x 8.40mm) |
| Height - Seated (Max) | 0.752" (19.10mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | ECW-F2474 |
| Product Attribute |  |
 |
 |
 |

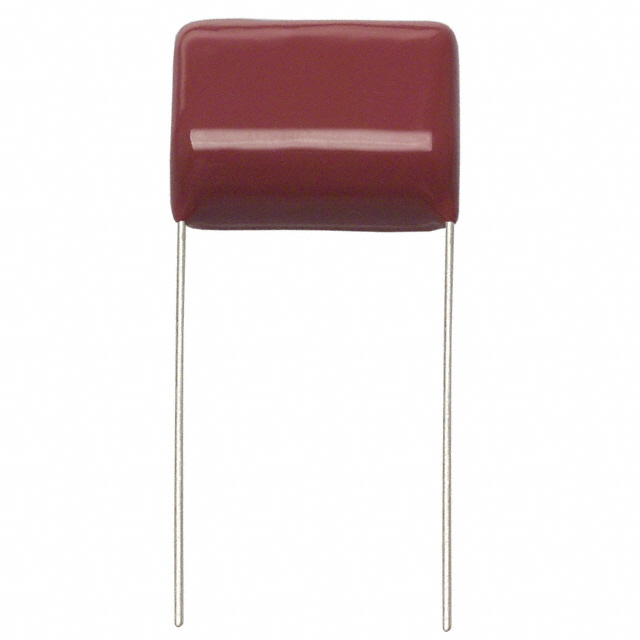

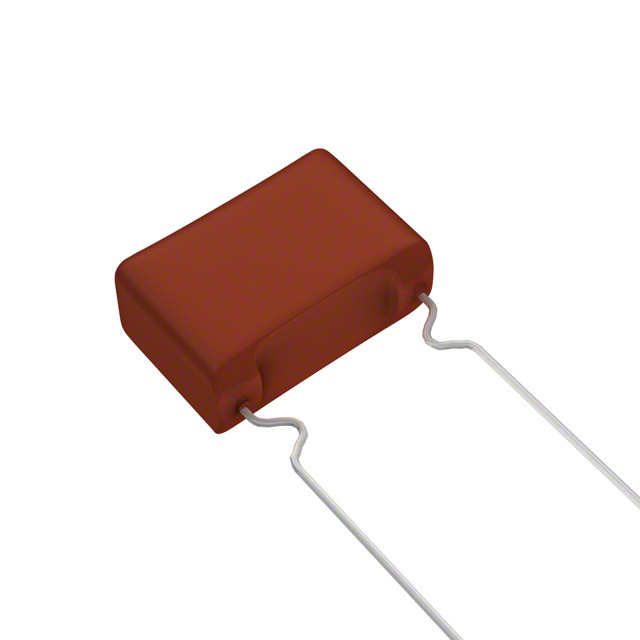

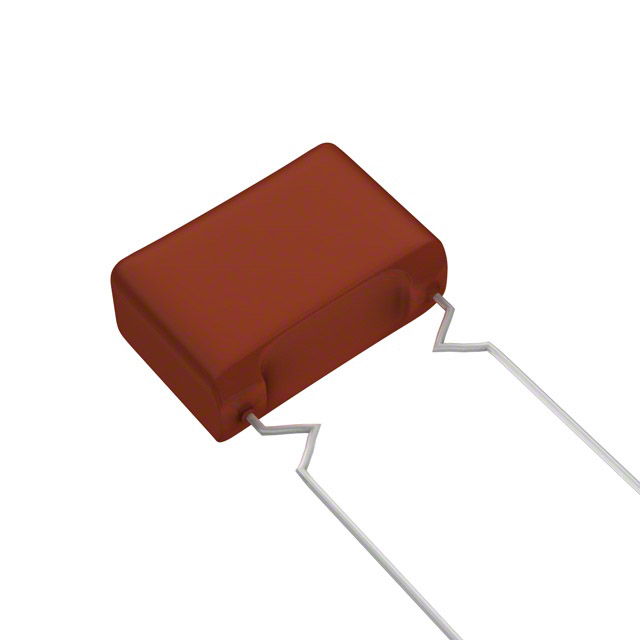

| Part Number | ECW-F2474HAQ | ECW-F2474JAB | ECW-F2474JAQ | ECW-F2474JB |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | CAP FILM 0.47UF 3% 250VDC RADIAL | CAP FILM 0.47UF 5% 250VDC RADIAL | CAP FILM 0.47UF 5% 250VDC RADIAL | CAP FILM 0.47UF 5% 250VDC RADIAL |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
