ECW-F6363HLB
lmages are for reference only.ECW-F6363HLB
CAP FILM 0.036UF 3% 630VDC RAD
DatasheetRadial
25,499 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.036 µF Film Capacitor 630V Polypropylene (PP), Metallized Radial
ECW-F6363HLB
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | ECW-F(L) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.036 µF |
| Tolerance | ±3% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.512" L x 0.287" W (13.00mm x 7.30mm) |
| Height - Seated (Max) | 0.598" (15.20mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | ECW-F6363 |
| Product Attribute |  |
 |
 |
|

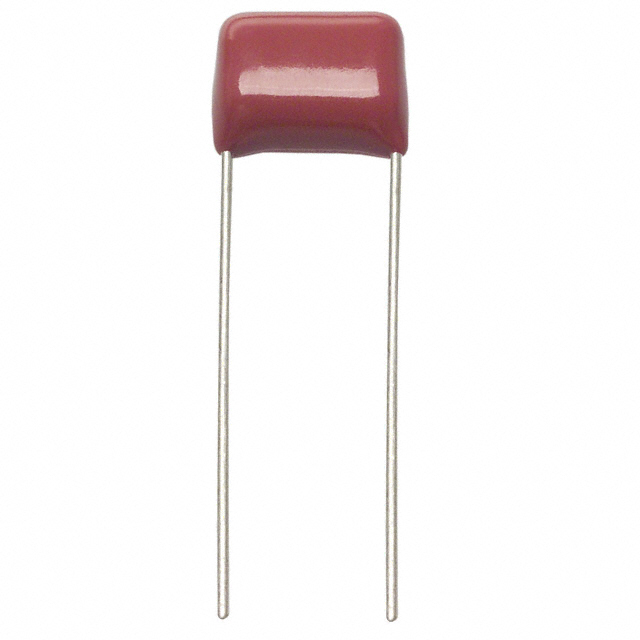

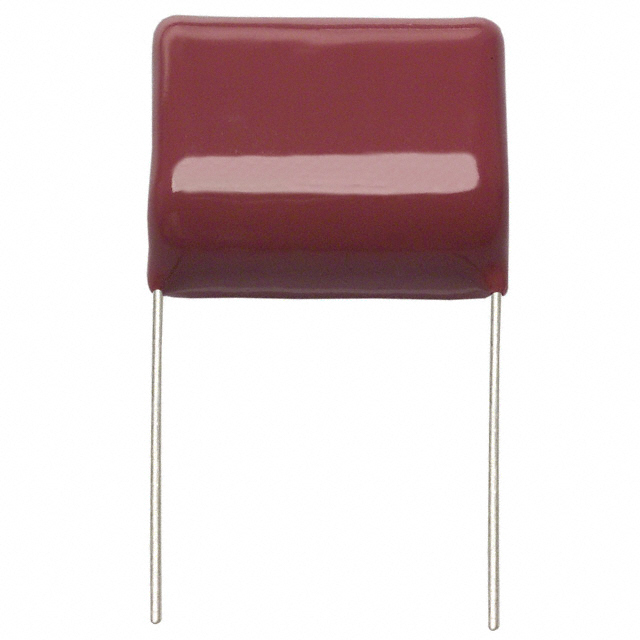

| Part Number | ECW-F6363HL | ECW-F6363JL | ECW-F6363JLB | ECW-F6363JLB |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.036UF 3% 630VDC RAD | CAP FILM 0.036UF 5% 630VDC RAD | CAP FILM 0.036UF 5% 630VDC RAD | CAP FILM 0.036UF 5% 630VDC RAD |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
