ECW-FA2J105JQ
lmages are for reference only.ECW-FA2J105JQ
CAP FILM 1UF 5% 630VDC RADIAL
DatasheetRadial
65,505 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µF Film Capacitor 630V Polypropylene (PP), Metallized Radial
ECW-FA2J105JQ
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | ECW-F(A) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.024" L x 0.437" W (26.00mm x 11.10mm) |
| Height - Seated (Max) | 0.913" (23.20mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | ECW-FA |
| Product Attribute |  |
 |
 |
 |

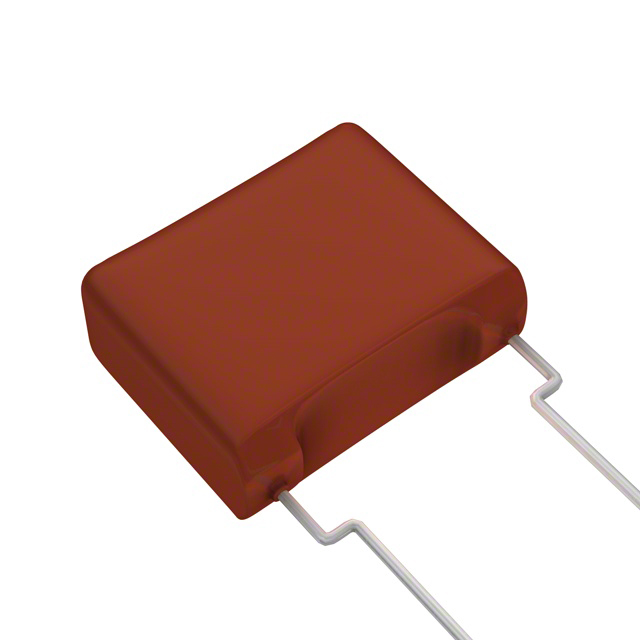

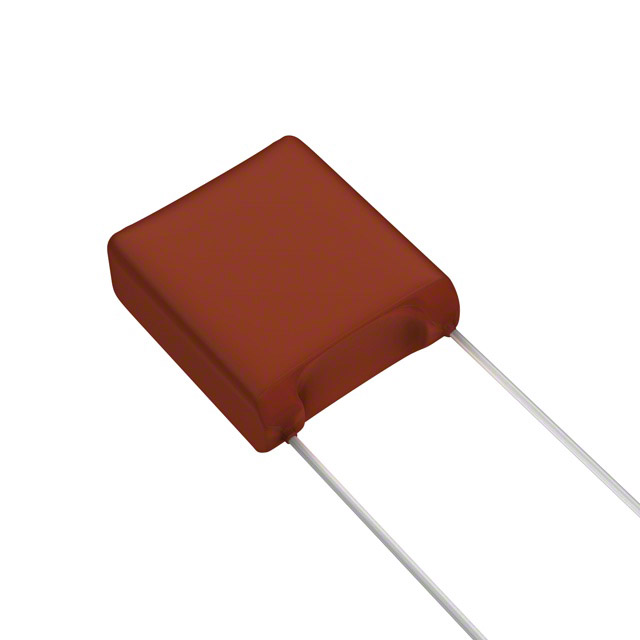

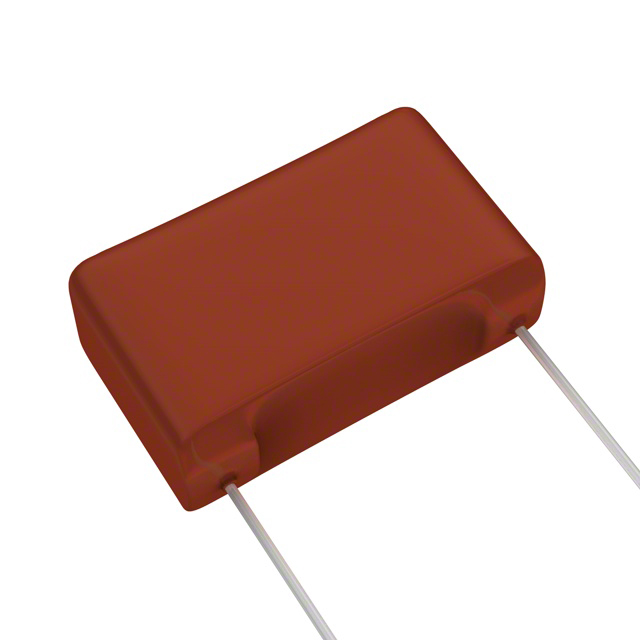

| Part Number | ECW-FA2J105J | ECW-FA2J105JB | ECW-FA2J104J | ECW-FA2J104J4 |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 1UF 5% 630VDC RADIAL | CAP FILM 1UF 5% 630VDC RADIAL | CAP FILM 0.1UF 5% 630VDC RADIAL | CAP FILM 0.1UF 5% 630VDC RADIAL |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Bulk | Bulk | Cut Tape (CT)-->Tape & Box (TB) |
