ECW-FD2W274JQ
lmages are for reference only.ECW-FD2W274JQ
CAP FILM 0.27UF 5% 450VDC RADIAL
DatasheetRadial
40,832 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.27 µF Film Capacitor 450V Polypropylene (PP), Metallized Radial
ECW-FD2W274JQ
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | ECW-F(D) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.27 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 450V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.496" L x 0.209" W (12.60mm x 5.30mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | ECW-FD |
| Product Attribute |  |
 |
 |
 |

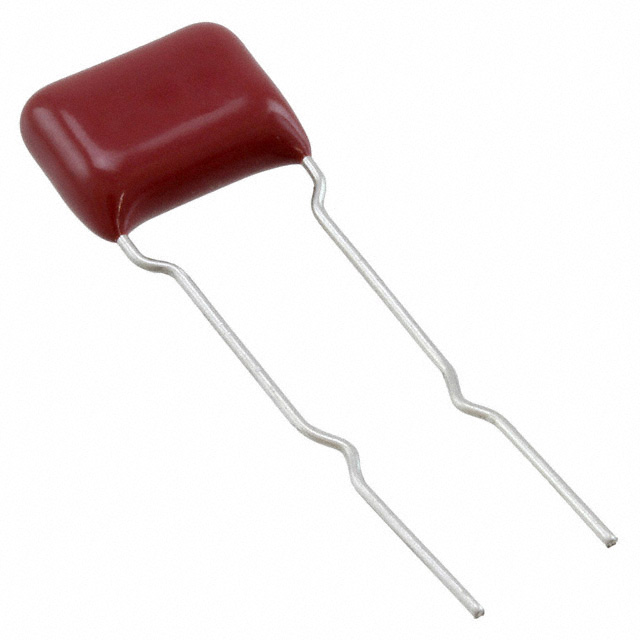

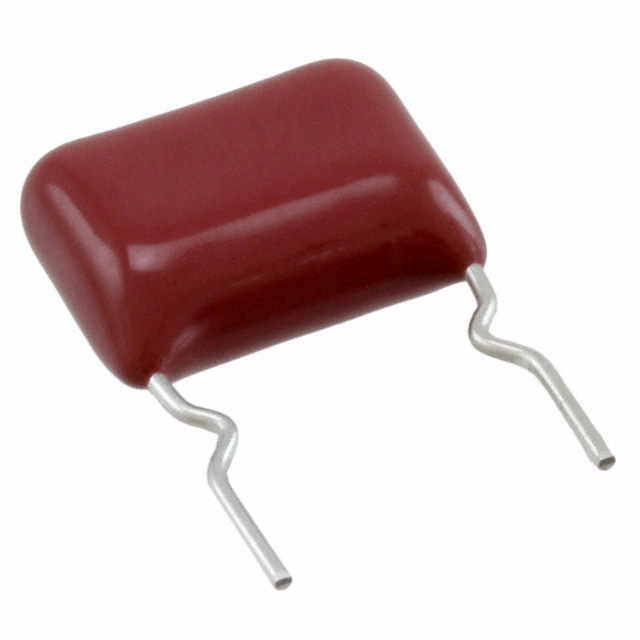

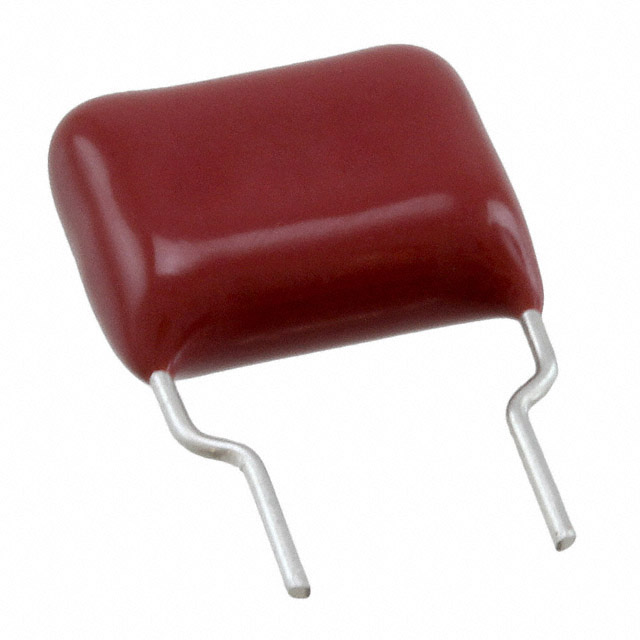

| Part Number | ECW-FD2W274J4 | ECW-FD2W274JB | ECW-FD2W274K4 | ECW-FD2W274KB |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.27UF 5% 450VDC RADIAL | CAP FILM 0.27UF 5% 450VDC RADIAL | CAP FILM 0.27UF 10% 450VDC RAD | CAP FILM 0.27UF 10% 450VDC RAD |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Bulk | Cut Tape (CT)-->Tape & Box (TB) | Bulk |
