ECW-H16562RHV
lmages are for reference only.ECW-H16562RHV
CAP FILM 5600PF 3% 1.6KVDC RAD
DatasheetRadial
58,157 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5600 pF Film Capacitor 1600V (1.6kV) Polypropylene (PP), Metallized Radial
ECW-H16562RHV
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | ECW-H(V) |
| Packaging | Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 5600 pF |
| Tolerance | ±3% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.906" L x 0.256" W (23.00mm x 6.50mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | ECW-H |
| Product Attribute | |
|
 |
 |

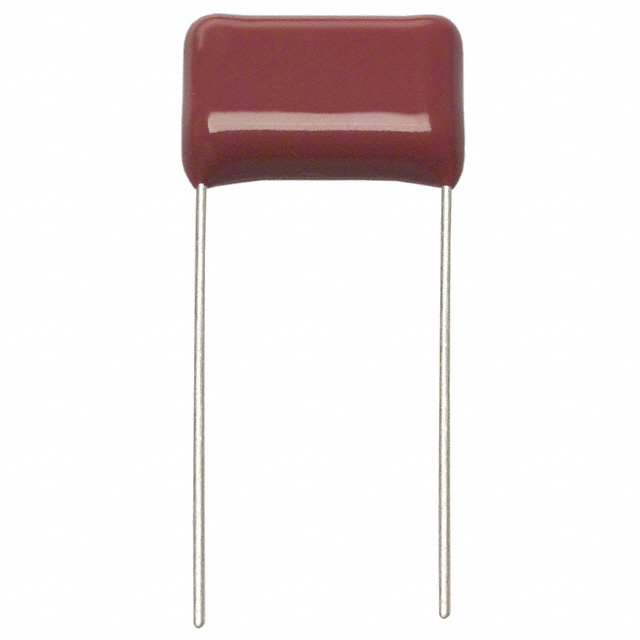

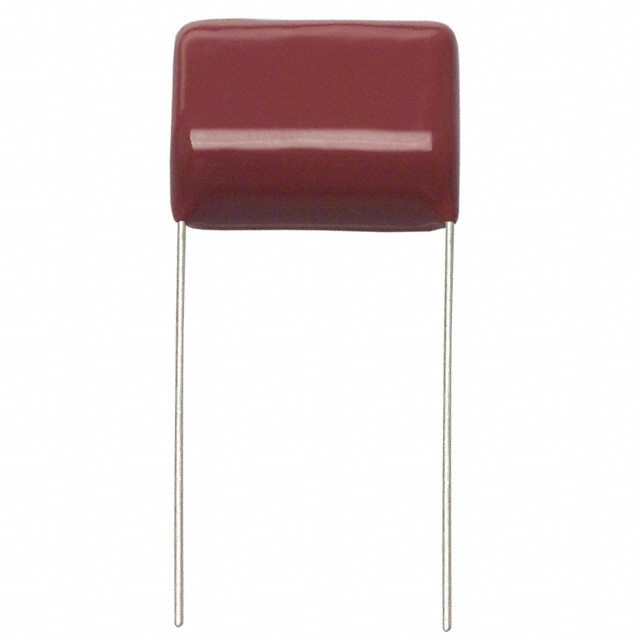

| Part Number | ECW-H16562HV | ECW-H16562HVB | ECW-H16562JL | ECW-H16562JV |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | CAP FILM 5600PF 3% 1.6KVDC RAD | CAP FILM 5600PF 3% 1.6KVDC RAD | CAP FILM 5600PF 5% 1.6KVDC RAD | CAP FILM 5600PF 5% 1.6KVDC RAD |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
