ECW-H8363JV
lmages are for reference only.ECW-H8363JV
CAP FILM .036UF 5% 800VDC RAD
DatasheetRadial
40,154 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.036 µF Film Capacitor 800V Polypropylene (PP), Metallized Radial
ECW-H8363JV
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | ECW-H(V) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.036 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 800V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.906" L x 0.276" W (23.00mm x 7.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.787" (20.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |

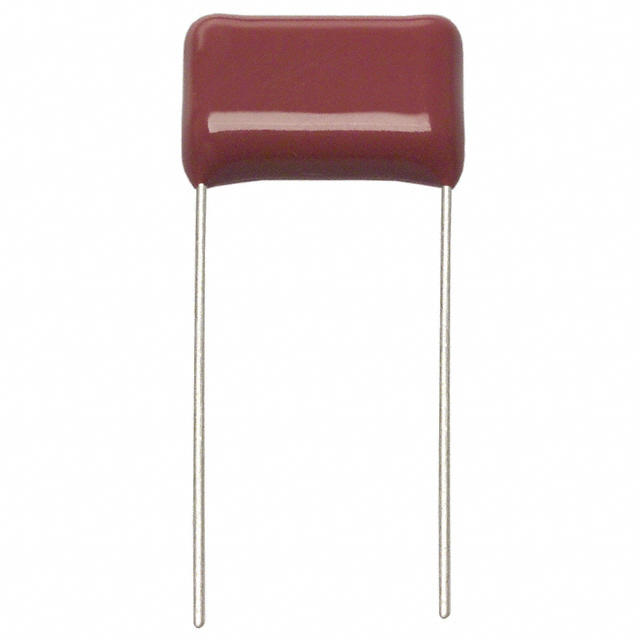

| Part Number | ECW-H8363JVB | ECW-H8362HV | ECW-H8362HVB | ECW-H8362JV |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM .036UF 5% 800VDC RAD | CAP FILM 3600PF 3% 800VDC RAD | CAP FILM 3600PF 3% 800VDC RAD | CAP FILM 3600PF 5% 800VDC RAD |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
