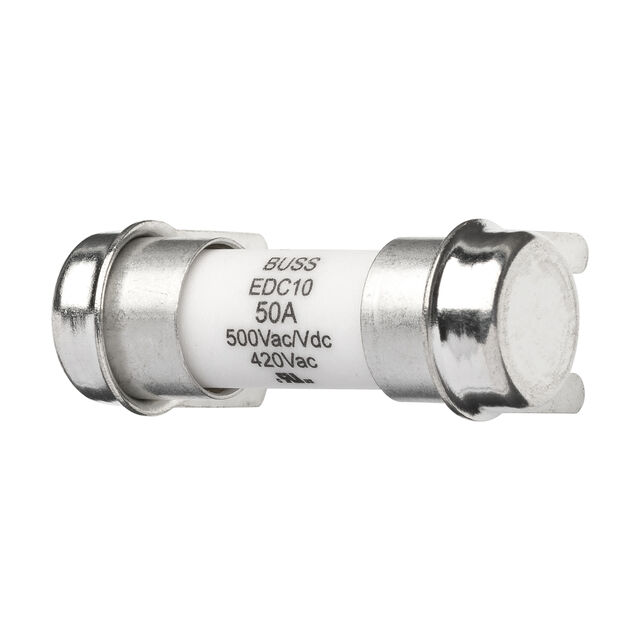

EDC10-50-PCB
lmages are for reference only.EDC10-50-PCB
FUSE EV 50A 500VAC/DC PCB
DatasheetRadial Bend Cylinder
94,822 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
50A 500 VAC 500 VDC Fuse Cartridge Through Hole
EDC10-50-PCB
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Eaton - Electronics Division |
| Series | EDC10 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 50A |
| Voltage Rating - AC | 500 VAC |
| Response Time | - |
| Applications | Electrical, Industrial |
| Features | - |
| Class | - |
| Approval Agency | cURus |
| Operating Temperature | -40°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 3kA AC, 10kA DC |
| Package / Case | Radial Bend Cylinder |
| Size / Dimension | 0.484" Dia x 1.315" L (12.30mm x 33.40mm) |
| Base Product Number | - |
| Voltage Rating - DC | 500 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | 0.0016 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | EDC10-50-T | EDC10-30-PCB | EDC10-30-T | EDC10-40-PCB |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE EV 50A 500VAC/DC T TERM | FUSE EV 30A 500VAC/DC PCB | FUSE EV 30A 500VAC/DC PCB | FUSE EV 40A 500VAC/DC PCB |
| Series | EDC10 | EDC10 | EDC10 | EDC10 |
| Packaging | Box | Box | Box | Box |
