EEU-FC1H561S
lmages are for reference only.EEU-FC1H561S
CAP ALUM 560UF 20% 50V RADIAL TH
DatasheetRadial, Can
13,763 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
560 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
EEU-FC1H561S
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | FC |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.425 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | EEU-FC |
| Impedance | 68 mOhms |
| Product Attribute |  |
 |
 |
 |

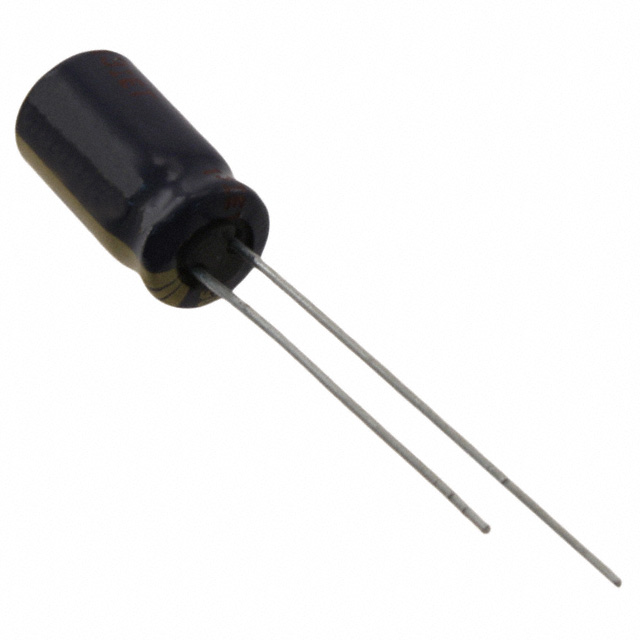

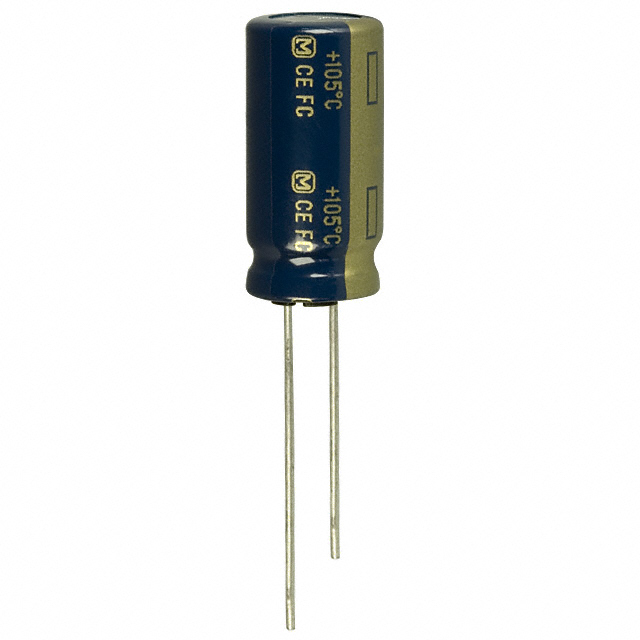

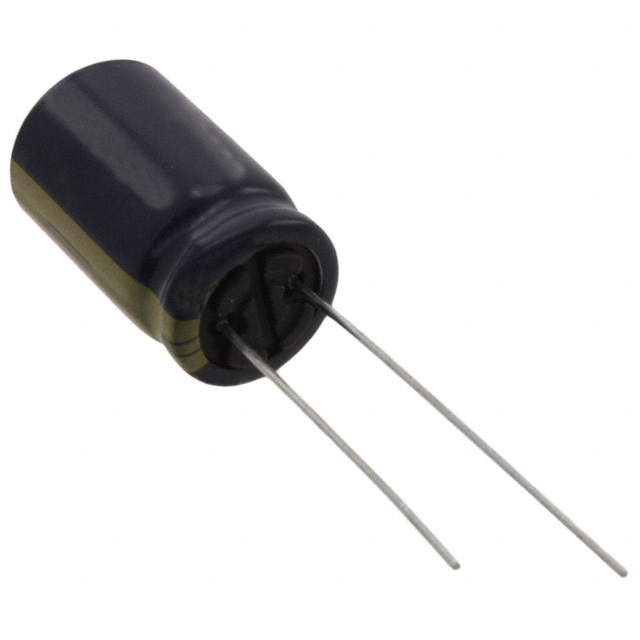

| Part Number | EEU-FC1H561 | EEU-FC1H561B | EEU-FC1H561SB | EEU-FC1H560 |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | CAP ALUM 560UF 20% 50V RADIAL TH | CAP ALUM 560UF 20% 50V RADIAL TH | CAP ALUM 560UF 20% 50V RADIAL TH | CAP ALUM 56UF 20% 50V RADIAL TH |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Tape & Box (TB) | Tape & Box (TB) | Bulk |

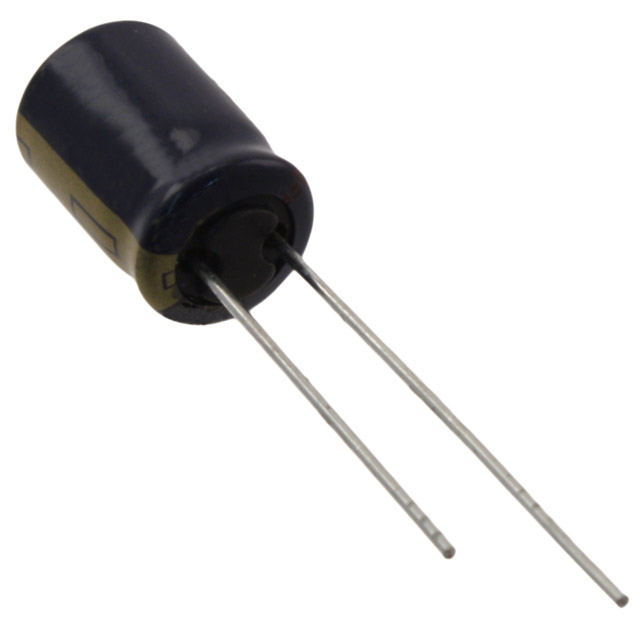

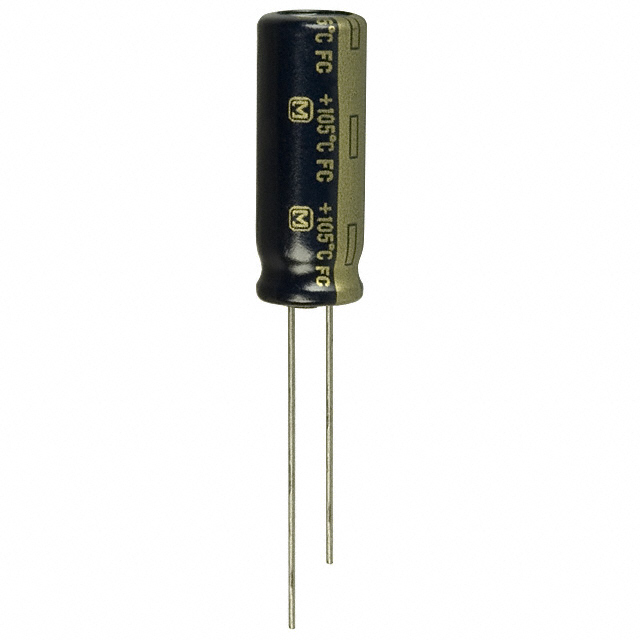

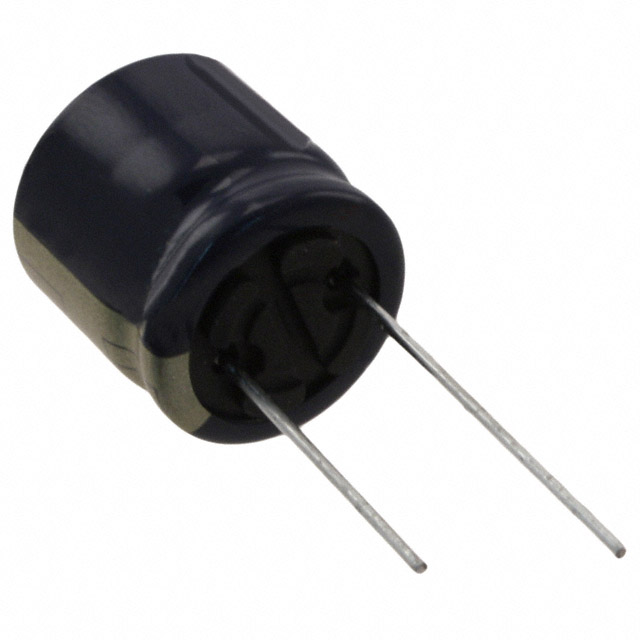

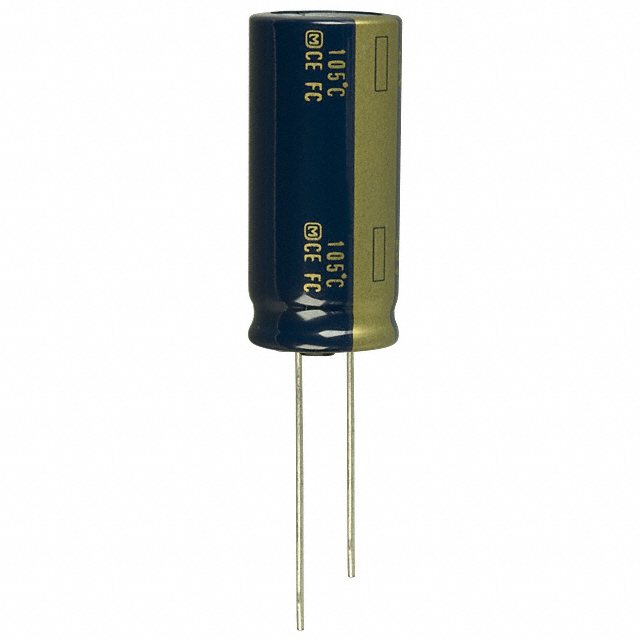

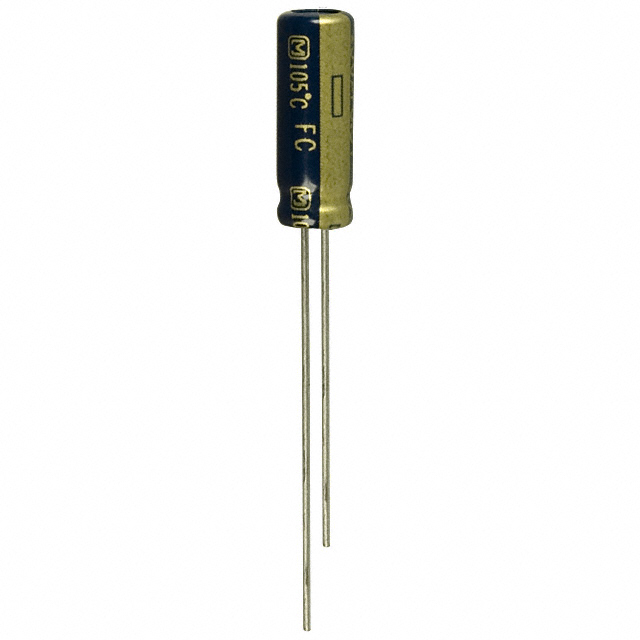

Recommended Products
