EFDKA90K905D134BH
lmages are for reference only.EFDKA90K905D134BH
CAP FILM 9UF 10% 900VDC RAD
DatasheetRadial - 4 Leads
68,606 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
9 µF Film Capacitor 900V Polypropylene (PP), Metallized Radial - 4 Leads
EFDKA90K905D134BH
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Eaton - Electronics Division |
| Series | EFDKA |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 9 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 900V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 1.260" L x 0.866" W (32.00mm x 22.00mm) |
| Height - Seated (Max) | 1.488" (37.80mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | Automotive; DC Link, DC Filtering |
| Ratings | AEC-Q200 |
| Features | - |
| ESR (Equivalent Series Resistance) | 7.8 mOhms |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | EFDKA90K905D132LH | EFDKA90J105D022LH | EFDKA90J106D132LH | EFDKA90J106D134BH |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | |||

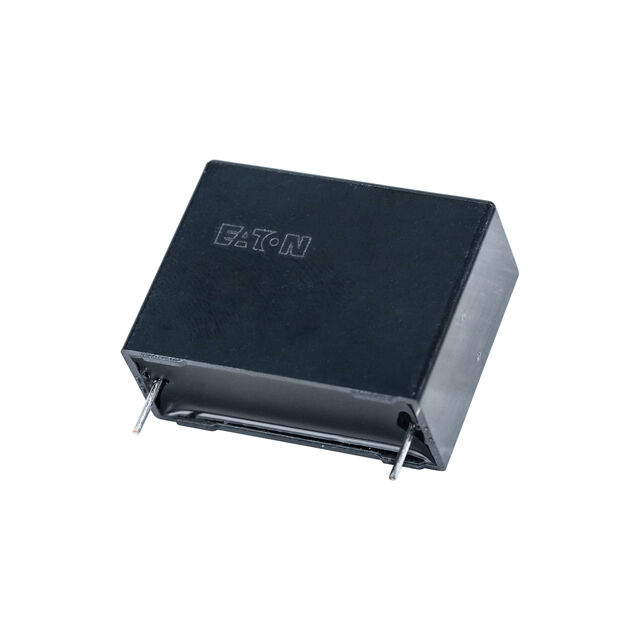

| Description | CAP FILM 9UF 10% 900VDC RAD | CAP EFDKA 900VDC 1UF J 2LEADS | CAP EFDKA 900VDC 10UF J 2LEADS | CAP EFDKA 900VDC 10UF J 4LEADS |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
