EFDKS1BJ105D032LH
lmages are for reference only.EFDKS1BJ105D032LH
CAP EFDKS 1100VDC 1UF J 2LEADS
DatasheetRadial
43,468 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial
EFDKS1BJ105D032LH
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Eaton - Electronics Division |
| Series | EFDKS |
| Packaging | Bulk |
| RoHS Status | |
| Capacitance | 1 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.260" L x 0.433" W (32.00mm x 11.00mm) |
| Height - Seated (Max) | 0.819" (20.80mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | 65 mOhms |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

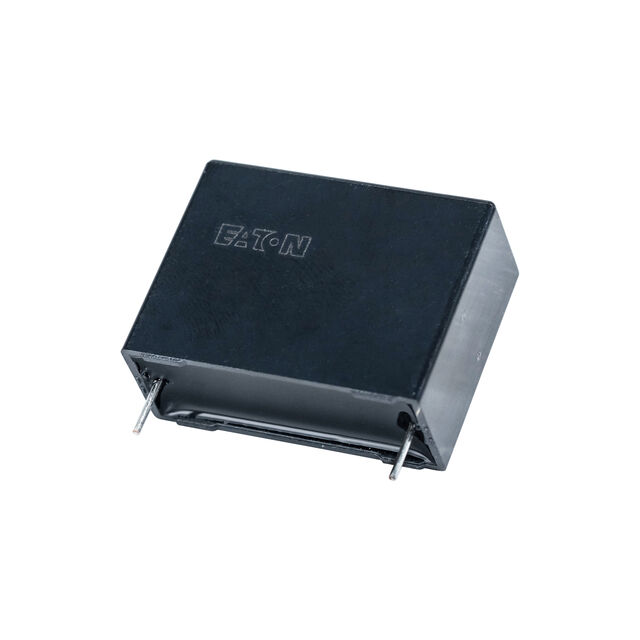

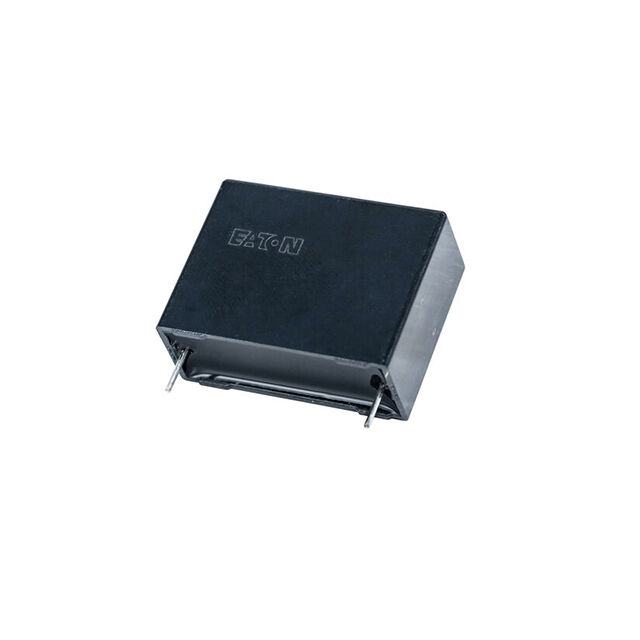

| Part Number | EFDKS1BJ106E154BH | EFDKS1BJ126E154BH | EFDKS1BJ146E164DH | EFDKS1BJ155D042LH |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ||||
| Description | CAP EFDKS 1100VDC 10UF J 4LEADS | CAP EFDKS 1100VDC 12UF J 4LEADS | CAP EFDKS 1100VDC 14UF J 4LEADS | CAP EFDKS 1100VDC 1.5UF J 2LEADS |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
