EFDKS1CJ206F024DH

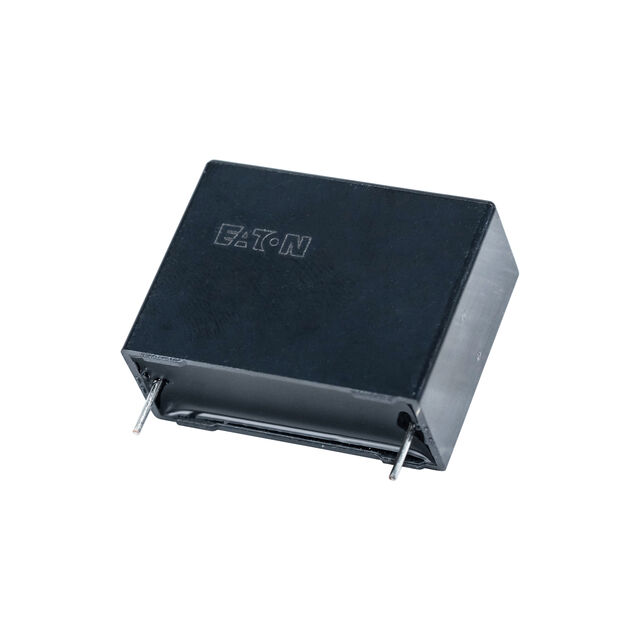

lmages are for reference only.EFDKS1CJ206F024DH
CAP EFDKS 1200VDC 20UF J 4LEADS
DatasheetRadial - 4 Leads
80,116 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20 µF Film Capacitor 1200V (1.2kV) Polypropylene (PP), Metallized Radial - 4 Leads
EFDKS1CJ206F024DH
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Eaton - Electronics Division |
| Series | EFDKS |
| Packaging | Bulk |
| RoHS Status | |
| Capacitance | 20 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 2.264" L x 1.181" W (57.50mm x 30.00mm) |
| Height - Seated (Max) | 1.811" (46.00mm) |
| Termination | PC Pins |
| Lead Spacing | 2.067" (52.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | 10 mOhms |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | EFDKS1CJ206E184DH | EFDKS1CJ105D032LH | EFDKS1CJ106E154BH | EFDKS1CJ126E164DH |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ||||
| Description | CAP EFDKS 1200VDC 20UF J 4LEADS | CAP EFDKS 1200VDC 1UF J 2LEADS | CAP EFDKS 1200VDC 10UF J 4LEADS | CAP EFDKS 1200VDC 12UF J 4LEADS |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
