EFPLS1GJ682B012LH

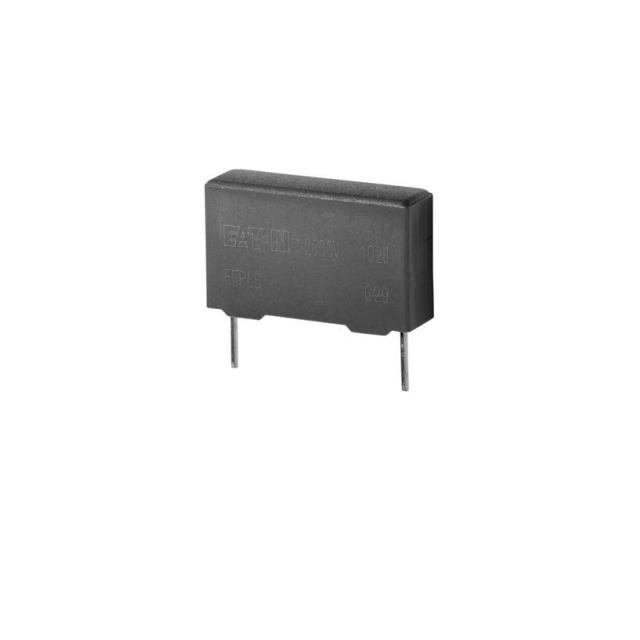

lmages are for reference only.EFPLS1GJ682B012LH
CAP FILM 0.0068UF 5% 1600VDC RAD
DatasheetRadial
83,721 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6800 pF Film Capacitor 1600V (1.6kV) Polypropylene (PP), Metallized Radial
EFPLS1GJ682B012LH
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Eaton - Electronics Division |
| Series | EFPLS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 6800 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709" L x 0.197" W (18.00mm x 5.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | 100 mOhms |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | EFPLS1GJ103B012LH | EFPLS1GJ104C052LH | EFPLS1GJ104D042LH | EFPLS1GJ104E012LH |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.01UF 5% 1600VDC RAD | CAP FILM 0.1UF 5% 1600VDC RAD | CAP FILM 0.1UF 5% 1600VDC RAD | CAP FILM 0.1UF 5% 1600VDC RAD |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
