EFPLS63J823B112LH

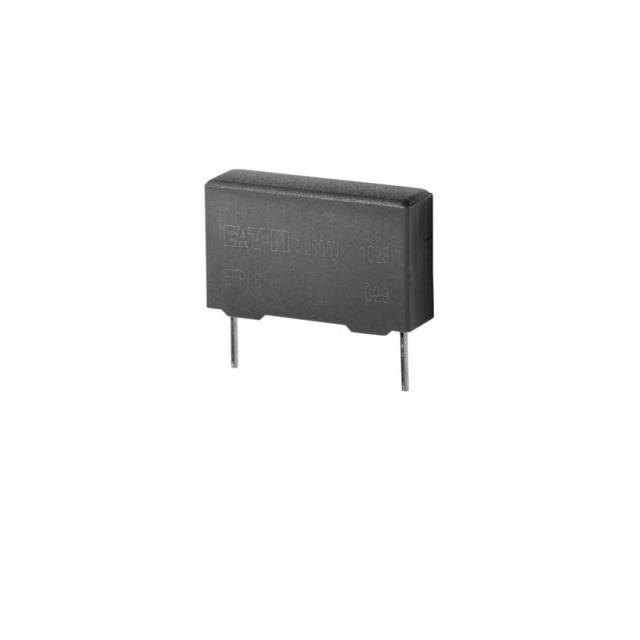

lmages are for reference only.EFPLS63J823B112LH
CAP FILM 0.082UF 5% 630VDC RAD
DatasheetRadial
20,808 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.082 µF Film Capacitor 630V Polypropylene (PP), Metallized Radial
EFPLS63J823B112LH
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Eaton - Electronics Division |
| Series | EFPLS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.082 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709" L x 0.394" W (18.00mm x 10.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | 13.2 mOhms |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | EFPLS63J823C012LH | EFPLS63J823C012LH | EFPLS63J103B012LH | EFPLS63J104B112LH |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.082UF 5% 630VDC RAD | CAP FILM 0.082UF 5% 630VDC RAD | CAP FILM 0.01UF 5% 630VDC RAD | CAP FILM 0.1UF 5% 630VDC RAD |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
