EFR32BG13P532F512GM48-DR

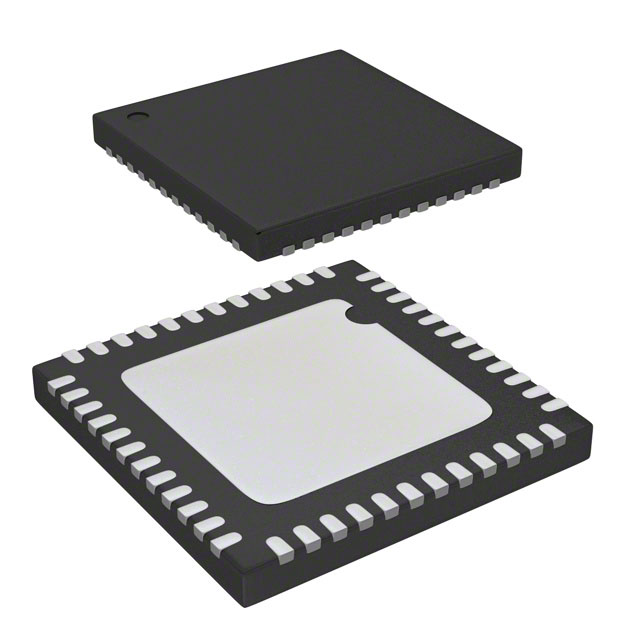

lmages are for reference only.EFR32BG13P532F512GM48-DR
IC RF TXRX+MCU BLE 48QFN
Datasheet48-VFQFN Exposed Pad
44,793 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IC RF TxRx + MCU Bluetooth Bluetooth v5.0 2.4GHz ~ 2.4835GHz 48-VFQFN Exposed Pad
EFR32BG13P532F512GM48-DR
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | Silicon Labs |
| Series | EFR32™ Blue Gecko |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | TxRx + MCU |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v5.0 |
| Modulation | 2FSK, 4FSK, ASK, BPSK, DBPSK, DSSS, GFSK, GMSK, MSK, OOK, OQPSK |
| Frequency | 2.4GHz ~ 2.4835GHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 0dBm |
| Sensitivity | -103.3dBm |
| Memory Size | 512kB Flash, 64kB RAM |
| Serial Interfaces | I2C, I2S, SPI, IrDA, UART, USART |
| GPIO | 31 |
| Voltage - Supply | 1.8V ~ 3.8V |
| Current - Receiving | 8.4mA ~ 14mA |
| Current - Transmitting | 8.5mA ~ 134.3mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (7x7) |
| Base Product Number | EFR32BG13P532 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | EFR32BG13P532F512GM48-D | EFR32BG13P532F512GM48-B | EFR32BG13P532F512GM48-BR | EFR32BG13P532F512GM48-C |
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC RF TXRX+MCU BLE 48QFN | IC RF TXRX+MCU 802.15.4 48QFN | IC RF TXRX+MCU 802.15.4 48QFN | IC RF TXRX+MCU 802.15.4 48QFN |
| Series | EFR32™ Blue Gecko | Blue Gecko | - | - |
| Packaging | Tray | Tray | Tape & Reel (TR) | Tray |
