EFR32FG23A010F512GM40-B

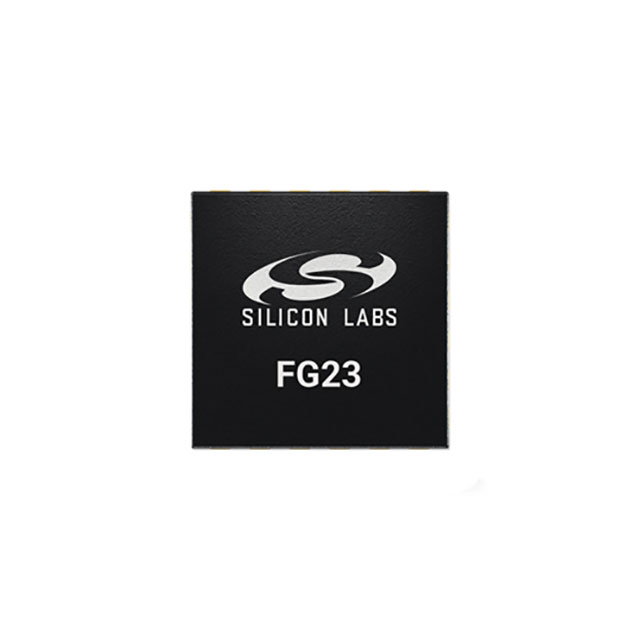

lmages are for reference only.EFR32FG23A010F512GM40-B
IC RF TXRX+MCU ISM<1GHZ 40QFN
Datasheet40-VFQFN Exposed Pad
49,696 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IC RF TxRx + MCU General ISM < 1GHz Flex Gecko 110MHz ~ 727MHz, 742MHz ~ 970MHz 40-VFQFN Exposed Pad
EFR32FG23A010F512GM40-B
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | Silicon Labs |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | TxRx + MCU |
| RF Family/Standard | General ISM < 1GHz |
| Protocol | Flex Gecko |
| Modulation | 2FSK, 4FSK, DSSS, GFSK, GMSK, OOK, OQPSK |
| Frequency | 110MHz ~ 727MHz, 742MHz ~ 970MHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 14dBm |
| Sensitivity | -125.8dBm |
| Memory Size | 512kB Flash, 64kB RAM |
| Serial Interfaces | I2C, I2S, SPI, UART |
| GPIO | 31 |
| Voltage - Supply | 1.71V ~ 3.8V |
| Current - Receiving | 3.7mA ~ 9.5mA |
| Current - Transmitting | 8.2mA ~ 90.6mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (5x5) |
| Base Product Number | EFR32FG23A010 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | EFR32FG23A010F512GM40-BR | EFR32FG23A010F512GM40-C | EFR32FG23A010F512GM40-CR | EFR32FG23A010F512GM48-B |
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC RF TXRX+MCU ISM<1GHZ 40QFN | IC RF TXRX+MCU WIFI 40QFN | IC RF TXRX+MCU WIFI 40QFN | IC RF TXRX+MCU ISM<1GHZ 48QFN |
| Series | - | EFR32FG23 | EFR32FG23 | - |
| Packaging | Tape & Reel (TR) | Tray | Tape & Reel (TR) | Tray |
