EFR32FG23B021F512IM48-CR

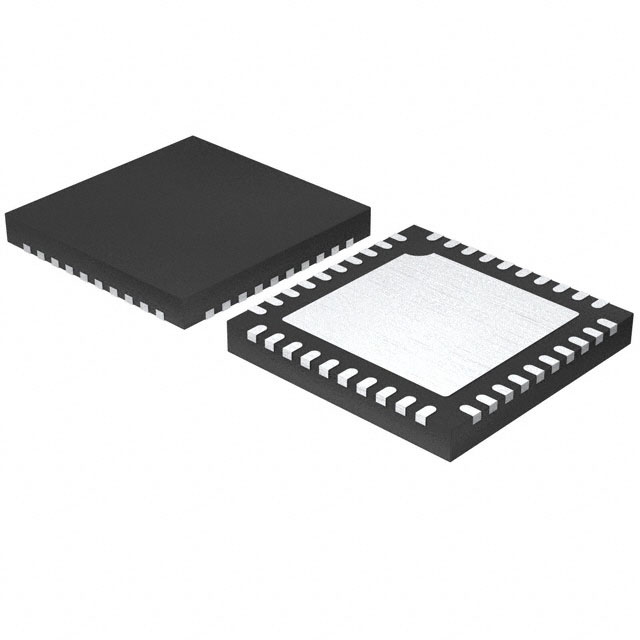

lmages are for reference only.EFR32FG23B021F512IM48-CR
IC RF TXRX+MCU WIFI 48QFN
Datasheet48-VFQFN Exposed Pad
93,719 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IC RF TxRx + MCU WiFi 169.4MHz ~ 169.475MHz, 169.5875MHz ~ 169.8125MHz, 314MHz ~ 315MHz, 314MHz ~ 316MHz, 433MHz ~ 434.79MHz, 470MHz ~ 510MHz, 863MHz ~ 869.2MHz, 863MHz ~ 870MHz, 869.4MHz ~ 869.65MHz, 902MHz ~ 928MHz, 920MHz ~ 928MHz, 922.3MHz ~ 928.1MHz 48-VFQFN Exposed Pad
EFR32FG23B021F512IM48-CR
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | Silicon Labs |
| Series | EFR32FG23 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | TxRx + MCU |
| RF Family/Standard | WiFi |
| Protocol | - |
| Modulation | 2FSK, 2GMSK, 4FSK, 4GMSK, DSSS, GFSK, GMSK, OOK, O-QPSK |
| Frequency | 169.4MHz ~ 169.475MHz, 169.5875MHz ~ 169.8125MHz, 314MHz ~ 315MHz, 314MHz ~ 316MHz, 433MHz ~ 434.79MHz, 470MHz ~ 510MHz, 863MHz ~ 869.2MHz, 863MHz ~ 870MHz, 869.4MHz ~ 869.65MHz, 902MHz ~ 928MHz, 920MHz ~ 928MHz, 922.3MHz ~ 928.1MHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 20dBm |
| Sensitivity | -126.9dBm |
| Memory Size | 512kB Flash, 64kB RAM |
| Serial Interfaces | ADC, I2C, I2S, IrDA, SPI, UART, USART |
| GPIO | 30 |
| Voltage - Supply | 1.71V ~ 3.8V |
| Current - Receiving | 3.7mA ~ 9.5mA |
| Current - Transmitting | 8.2mA ~ 92mA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (6x6) |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | EFR32FG23B021F512IM40-C | EFR32FG23B021F512IM40-CR | EFR32FG23B021F512IM48-C | EFR32FG23A010F128GM40-C |
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC RF TXRX+MCU WIFI 40QFN | IC RF TXRX+MCU WIFI 40QFN | IC RF TXRX+MCU WIFI 48QFN | IC RF TXRX+MCU WIFI 40QFN |
| Series | EFR32FG23 | EFR32FG23 | EFR32FG23 | EFR32FG23 |
| Packaging | Tray | Tape & Reel (TR) | Tray | Tray |
