EFR32MG12P433F1024IM48-C

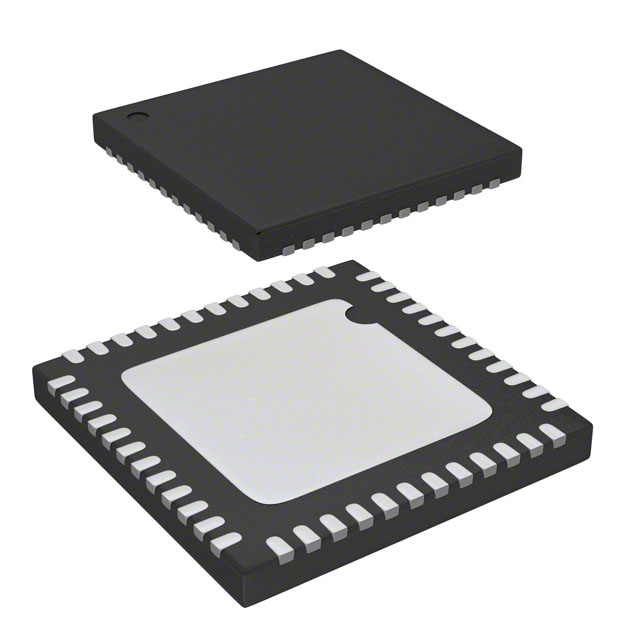

lmages are for reference only.EFR32MG12P433F1024IM48-C
IC RF TXRX+MCU 802.15.4 48QFN
Datasheet48-VFQFN Exposed Pad
16,526 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.0, Thread, Zigbee® 169MHz ~ 915MHz, 2.4GHz 48-VFQFN Exposed Pad
EFR32MG12P433F1024IM48-C
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | Silicon Labs |
| Series | Mighty Gecko |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | TxRx + MCU |
| RF Family/Standard | 802.15.4, Bluetooth |
| Protocol | Bluetooth v5.0, Thread, Zigbee® |
| Modulation | 2FSK, 2GFSK, 4FSK, 4GFSK, ASK, BPSK, DBPSK, DSSS, GFSK, GMSK, MSK, OOK, OQPSK |
| Frequency | 169MHz ~ 915MHz, 2.4GHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 20dBm |
| Sensitivity | -126.2dBm |
| Memory Size | 1MB Flash, 256kB RAM |
| Serial Interfaces | I2C, I2S, SPI, UART, USART |
| GPIO | 28 |
| Voltage - Supply | 1.8V ~ 3.8V |
| Current - Receiving | 8.4mA ~ 10.8mA |
| Current - Transmitting | 8.5mA ~ 35.3mA |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (7x7) |
| Base Product Number | EFR32MG12P433 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | EFR32MG12P433F1024IM48-CR | EFR32MG12P433F1024GL125-B | EFR32MG12P433F1024GL125-BR | EFR32MG12P433F1024GL125-C |
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | IC RF TXRX+MCU 802.15.4 48QFN | IC RF TXRX+MCU 802.15.4 125BGA | IC RF TXRX+MCU 802.15.4 125BGA | IC RF TXRX+MCU 802.15.4 125BGA |
| Series | Mighty Gecko | Mighty Gecko | Mighty Gecko | Mighty Gecko |
| Packaging | Tape & Reel (TR) | Tray | Tape & Reel (TR) | Tray |
