EFR32ZG23A020F512GM40-C

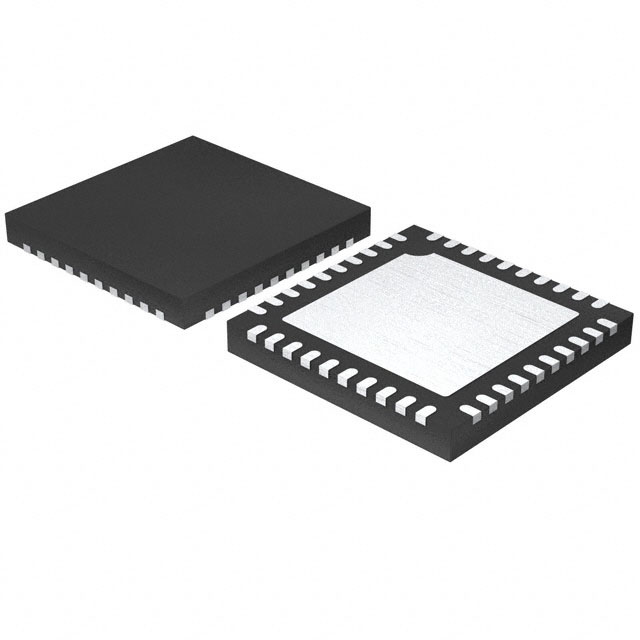

lmages are for reference only.EFR32ZG23A020F512GM40-C
IC RF TXRX+MCU ISM<1GHZ 40QFN
Datasheet40-VFQFN Exposed Pad
21,638 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IC RF TxRx + MCU General ISM < 1GHz Z-Wave® 433MHz ~ 434.79MHz, 863MHz ~ 869.2MHz, 863MHz ~ 870MHz, 869.4MHz ~ 869.65MHz, 902MHz ~ 928MHz 40-VFQFN Exposed Pad
EFR32ZG23A020F512GM40-C
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | Silicon Labs |
| Series | EFR32ZG23 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | TxRx + MCU |
| RF Family/Standard | General ISM < 1GHz |
| Protocol | Z-Wave® |
| Modulation | 2FSK, 2GFSK, DSSS, O-QPSK |
| Frequency | 433MHz ~ 434.79MHz, 863MHz ~ 869.2MHz, 863MHz ~ 870MHz, 869.4MHz ~ 869.65MHz, 902MHz ~ 928MHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 20dBm |
| Sensitivity | -126.9dBm |
| Memory Size | 512kB Flash, 64kB RAM |
| Serial Interfaces | ADC, GPIO, I2C, I2S, SPI, IrDA, UART |
| GPIO | 23 |
| Voltage - Supply | 1.71V ~ 3.8V |
| Current - Receiving | 4mA ~ 7.6mA |
| Current - Transmitting | 9.8mA ~ 92mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (5x5) |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | EFR32ZG23A020F512GM40-B | EFR32ZG23A020F512GM40-BR | EFR32ZG23A020F512GM40-CR | EFR32ZG23A020F512GM48-B |
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | |
| Description | IC RF TXRX+MCU ISM<1GHZ 40QFN | IC RF TXRX+MCU ISM<1GHZ 40QFN | IC RF TXRX+MCU ISM<1GHZ 40QFN | IC RF TXRX+MCU ISM<1GHZ 48QFN |
| Series | - | - | EFR32ZG23 | - |
| Packaging | Tray | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
