EHD-RD3303
lmages are for reference only.EHD-RD3303
DC DC CONVERTER 5.1V 1W
Datasheet10-SIP Module, 5 Leads
57,854 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 5.1V 100mA 113V - 170V Input
EHD-RD3303
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Panasonic Electronic Components |
| Series | EHD-RD |
| Packaging | Tray |
| RoHS Status | |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 113V |
| Voltage - Input (Max) | 170V |
| Voltage - Output 1 | 5.1V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Efficiency | 49% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 10-SIP Module, 5 Leads |
| Size / Dimension | 1.20" L x 0.24" W x 0.49" H (30.5mm x 6.0mm x 12.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | EHD-RD |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |

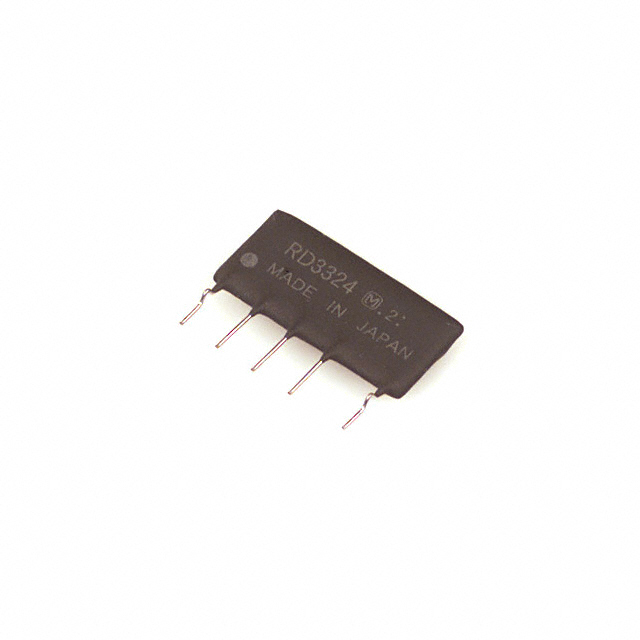

| Part Number | EHD-RD3306 | EHD-RD3320 | EHD-RD3323 | EHD-RD3324 |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||

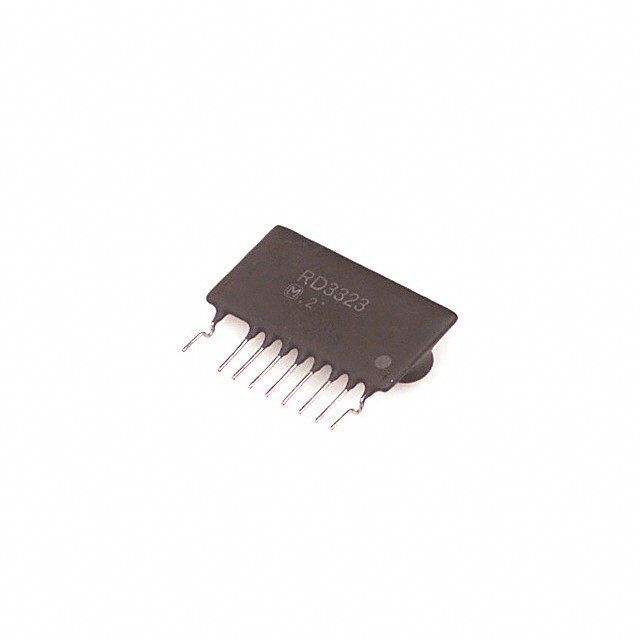

| Description | DC DC CONVERTER 5.1V 1W | DC DC CONVERTER 12V 2W | DC DC CONVERTER 12V 1W | DC DC CONVERTER 12V 2W |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Tray | Tray | Tray | Tray |
