EKMH160VNN153MQ35T
lmages are for reference only.Payment Methods
Delivery Services
15000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 44mOhm @ 120Hz 2000 Hrs @ 105°C
EKMH160VNN153MQ35T
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | KMH |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 44mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.58 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.7864 A @ 100 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.000" Dia (25.40mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

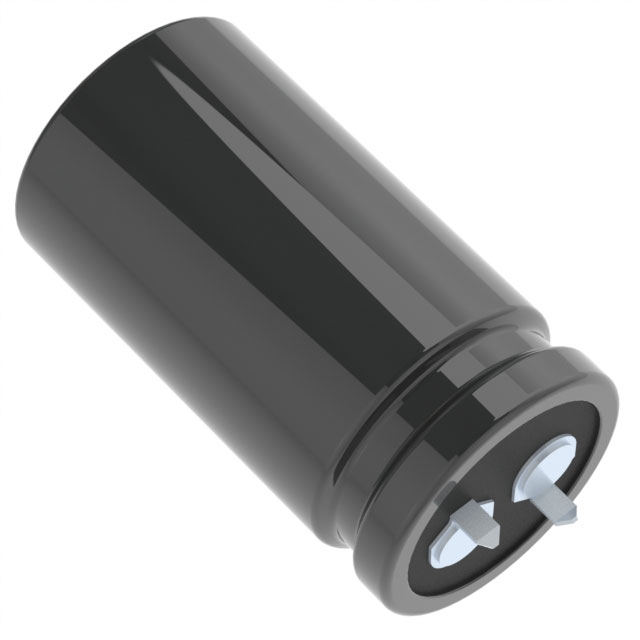

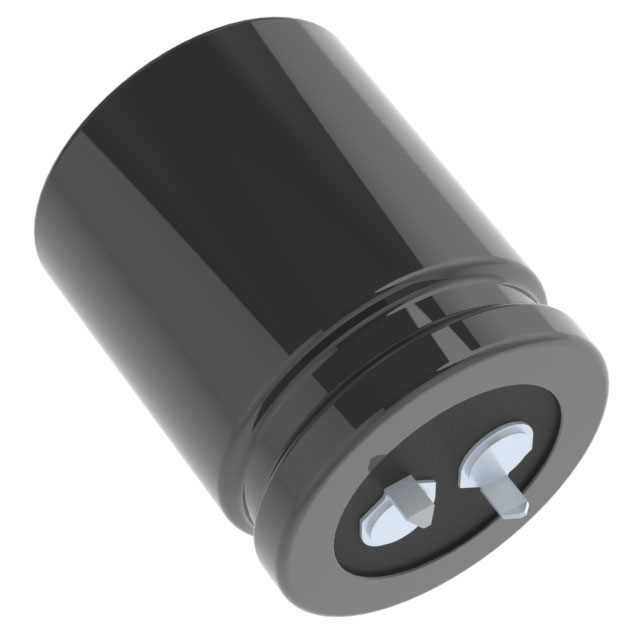

| Part Number | EKMH160VNN223MQ45S | EKMH160VNN223MQ45T | EKMH160VNN223MR35T | EKMH160VNN223MR35W |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 22000UF 20% 16V SNAP TH | CAP ALUM 22000UF 20% 16V SNAP TH | CAP ALUM 22000UF 20% 16V SNAP TH | CAP ALUM 22000UF 20% 16V SNAP TH |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
