EKMH201VNN122MA40S

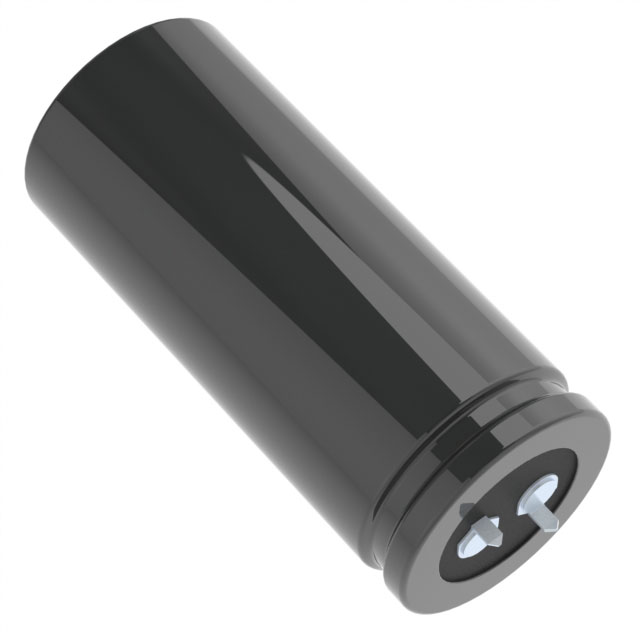

lmages are for reference only.Payment Methods
Delivery Services
1200 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 207mOhm @ 120Hz 2000 Hrs @ 105°C
EKMH201VNN122MA40S
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | KMH |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 207mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.65 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.975 A @ 100 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
 |
 |
 |
| Part Number | EKMH201VNN122MA35T | EKMH201VNN122MA40T | EKMH201VNN122MR50T | EKMH201VNN122MR50U |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | CAP ALUM 1200UF 20% 200V SNAP TH | CAP ALUM 1200UF 20% 200V SNAP TH | CAP ALUM 1200UF 20% 200V SNAP TH | CAP ALUM 1200UF 20% 200V SNAP TH |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
