Product CatalogPart Number
EKZE630ELL820MH15D
Manufacturer
Chemi-ConDescription
CAP ALUM 82UF 20% 63V RADIAL TH
Datasheet
DatasheetPackage
Radial, Can
In Stock
64,403 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EKZE630ELL820MH15D
EKZE630ELL820MH15D
lmages are for reference only.Payment Methods
Delivery Services
82 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Quick Inquiry
EKZE630ELL820MH15D
Specifications
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | KZE |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 266 mA @ 120 Hz |
| Ripple Current @ High Frequency | 665 mA @ 100 kHz |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | EKZE630E |
| Impedance | 160 mOhms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

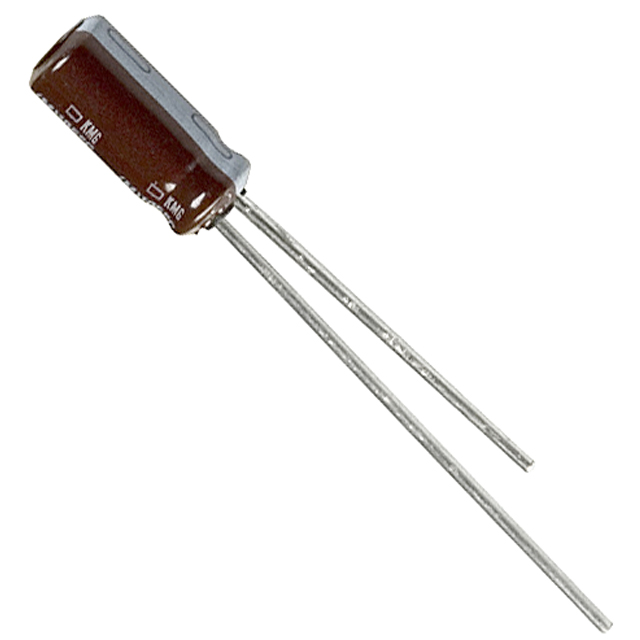

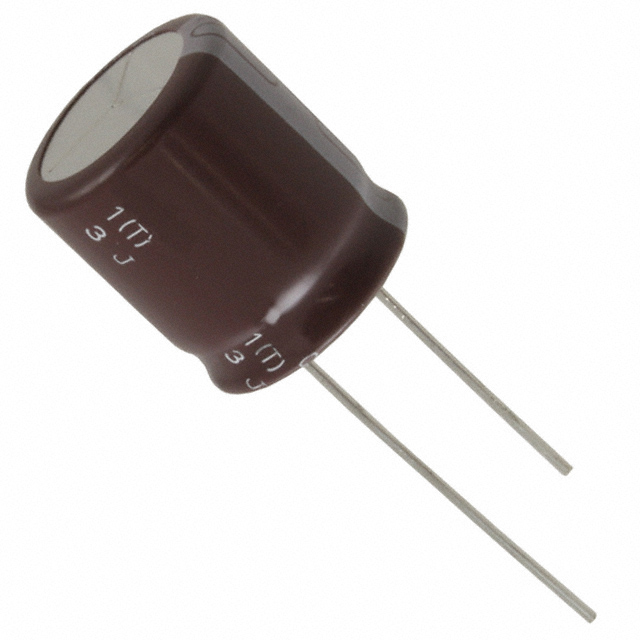

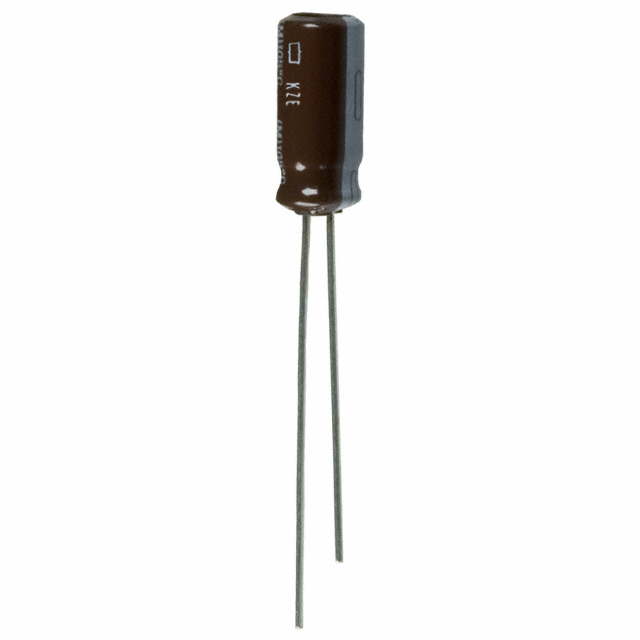

| Part Number | EKZE630ELL820MJC5S | EKZE630ELL821MLN3S | EKZE630ELL821MM25S | EKZE630EC3121MH20D |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 82UF 20% 63V RADIAL TH | CAP ALUM 63V POLAR | CAP ALUM 820UF 20% 63V RADIAL TH | CAP ALUM 120UF 20% 63V RADIAL TH |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
