Logic Output Optoisolator 10Mbps Open Collector 5000Vrms 2 Channel 10kV/µs CMTI 8-SMD
EL2631S1(TA)-V
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | Everlight Electronics Co Ltd |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 50 mA |
| Data Rate | 10Mbps |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Rise / Fall Time (Typ) | 40ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 7V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |
| Base Product Number | EL2631 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
|
| Part Number | EL2631S1(TA)-V | EL2601 | EL2601 | EL2601S(TA)-V |
| Manufacturer | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

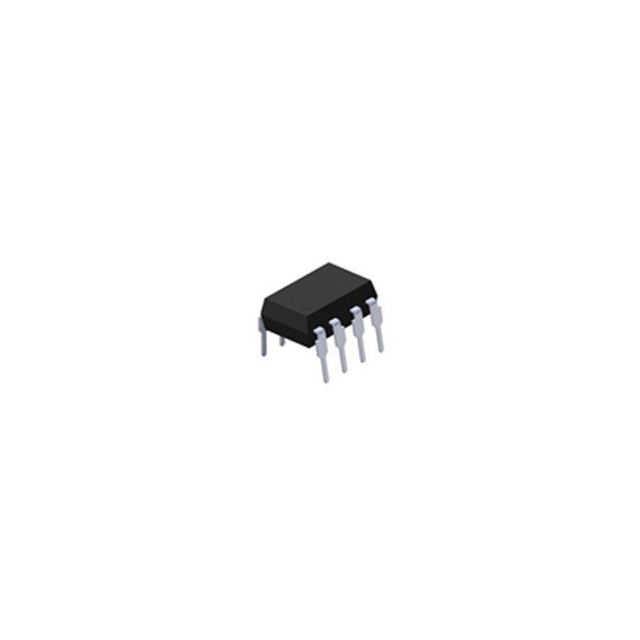

| Description | OPTOISO 5KV 2CH OPN COLL 8-SMD | OPTOISO 5KV OPEN COLLECTOR 8DIP | OPTOISO 5KV OPEN COLLECTOR 8DIP | OPTOISO 5KV OPEN COLLECTOR 8SMD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tube | Tape & Reel (TR) |
