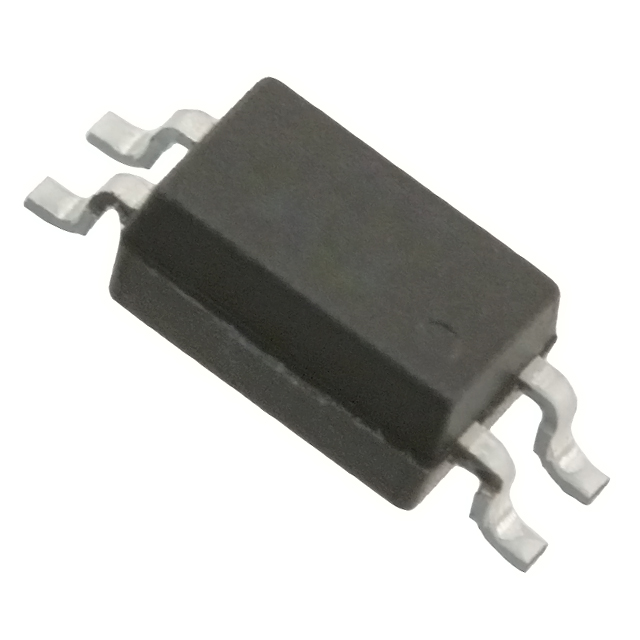

EL3H4(EA)-G
lmages are for reference only.EL3H4(EA)-G
OPTOISOLATOR 3.75KV TRANS 4-SSOP
Datasheet4-SOIC (0.173", 4.40mm Width)
16,075 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 3750Vrms 1 Channel 4-SSOP
EL3H4(EA)-G
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Everlight Electronics Co Ltd |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 20% @ 1mA |
| Current Transfer Ratio (Max) | 300% @ 1mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 6µs, 8µs |
| Input Type | AC, DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | - |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC (0.173", 4.40mm Width) |
| Supplier Device Package | 4-SSOP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | -VG.jpg "EL3H4(EA)-VG") |
(EA)-G.jpg "EL3H4(A)(EA)-G") |
(EA)-VG.jpg "EL3H4(A)(EA)-VG") |
(EB)-G.jpg "EL3H4(A)(EB)-G") |
| Part Number | EL3H4(EA)-VG | EL3H4(A)(EA)-G | EL3H4(A)(EA)-VG | EL3H4(A)(EB)-G |
| Manufacturer | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISOLATOR 3.75KV TRANS 4-SSOP | OPTOISOLATOR 3.75KV TRANS 4-SSOP | OPTOISOLATOR 3.75KV TRANS 4-SSOP | OPTOISOLATOR 3.75KV TRANS 4-SSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
