ELC-06D681E
lmages are for reference only.ELC-06D681E
FIXED IND 680UH 210MA 1.59OHM TH
DatasheetRadial, Vertical Cylinder
49,711 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
680 µH Unshielded Inductor 210 mA 1.59Ohm Radial, Vertical Cylinder
ELC-06D681E
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Panasonic Electronic Components |
| Series | 06D |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | - |
| Inductance | 680 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 210 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.59Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.264" Dia (6.70mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Base Product Number | ELC-06 |
| Product Attribute |  |
|
 |
|

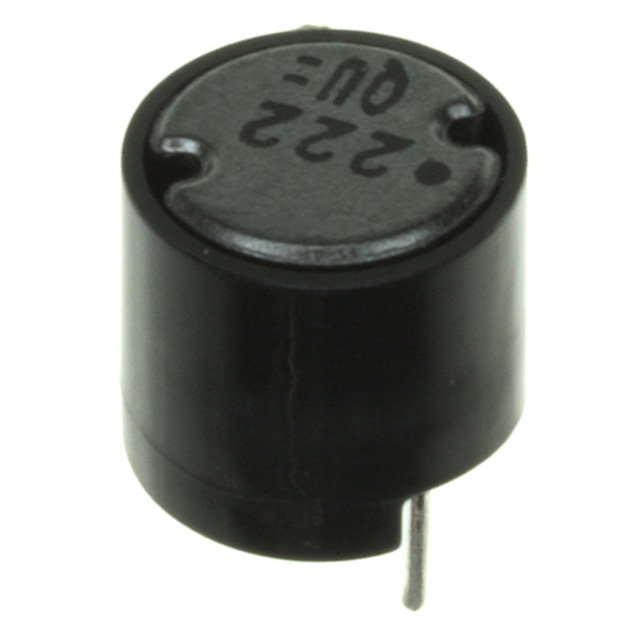

| Part Number | ELC-06D6R8E | ELC-06D6R8E | ELC-06D100E | ELC-06D101E |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 6.8UH 2A 41 MOHM TH | FIXED IND 6.8UH 2A 41 MOHM TH | FIXED IND 10UH 1.7A 52 MOHM TH | FIXED IND 100UH 500MA 230MOHM TH |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
