ELJ-NA2R7JF

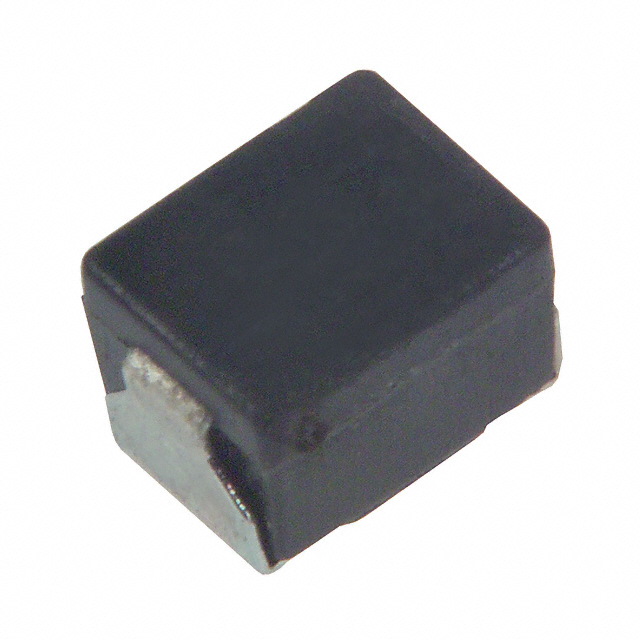

lmages are for reference only.ELJ-NA2R7JF
FIXED IND 2.7UH 105MA 3.6OHM SMD
Datasheet1210 (3225 Metric)
88,774 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.7 µH Unshielded Wirewound Inductor 105 mA 3.6Ohm Max 1210 (3225 Metric)
ELJ-NA2R7JF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Panasonic Electronic Components |
| Series | NA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Wirewound |
| Material - Core | Non-Magnetic |
| Inductance | 2.7 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 105 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.6Ohm Max |
| Q @ Freq | 13 @ 7.96MHz |
| Frequency - Self Resonant | 70MHz |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
| Base Product Number | ELJ-NA |
| Product Attribute |  |
 |
|
 |
| Part Number | ELJ-NA2R2JF | ELJ-NA1R0JF | ELJ-NA1R2JF | ELJ-NA1R5JF |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ||||
| Description | FIXED IND 2.2UH 110MA 3.2OHM SMD | FIXED IND 1UH 125MA 2.1 OHM SMD | FIXED IND 1.2UH 120MA 2.3OHM SMD | FIXED IND 1.5UH 115MA 2.7OHM SMD |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
