ELVH-L20D-HAAH-C-NAA5
lmages are for reference only.ELVH-L20D-HAAH-C-NAA5
SENSOR 0.73PSID 0.19"
Datasheet4-SIP, Dual Ports, Opposite Sides
88,745 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor -0.73PSI ~ 0.73PSI (-5kPa ~ 5kPa) Differential Male - 0.19" (4.93mm) Tube, Dual 4-SIP, Dual Ports, Opposite Sides
ELVH-L20D-HAAH-C-NAA5
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Amphenol All Sensors Corporation |
| Series | ELV |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | ELVH-L20D |
| Applications | - |
| Pressure Type | Differential |
| Operating Pressure | -0.73PSI ~ 0.73PSI (-5kPa ~ 5kPa) |
| Output Type | Analog Voltage |
| Output | - |
| Accuracy | ±0.25% |
| Voltage - Supply | 2.7V ~ 5.5V |
| Port Size | Male - 0.19" (4.93mm) Tube, Dual |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 12.62PSI (87kPa) |
| Operating Temperature | 0°C ~ 50°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, Dual Ports, Opposite Sides |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

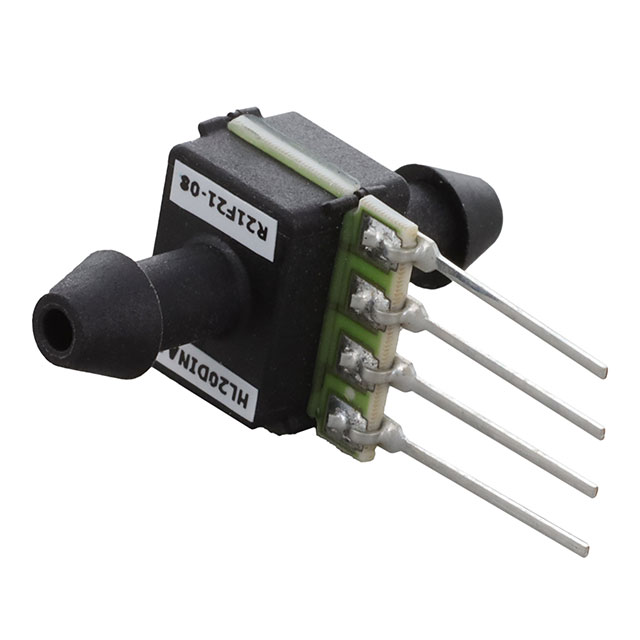

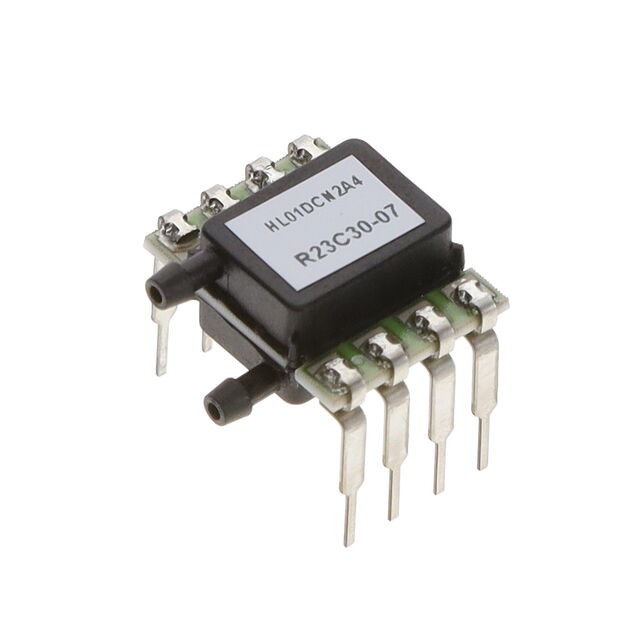

| Part Number | ELVH-L20D-HAAH-I-NAA5 | ELVH-L01D-HRND-C-NSA5 | ELVH-L01D-HRRD-C-N2A4 | ELVH-L01D-HRRD-C-N2A5 |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | SENSOR 0.73PSID 0.19" | SENSOR 0.2KPA 0.06" 14BIT | SENSOR 0.2KPA 0.06" 14BIT 8DIP | SENSOR 0.2KPA 0.06" 14BIT 8DIP |
| Series | ELV | ELV | ELV | ELV |
| Packaging | Tray | Tray | Tray | Tray |
