ELXM161VSN471MP30S
lmages are for reference only.Payment Methods
Delivery Services

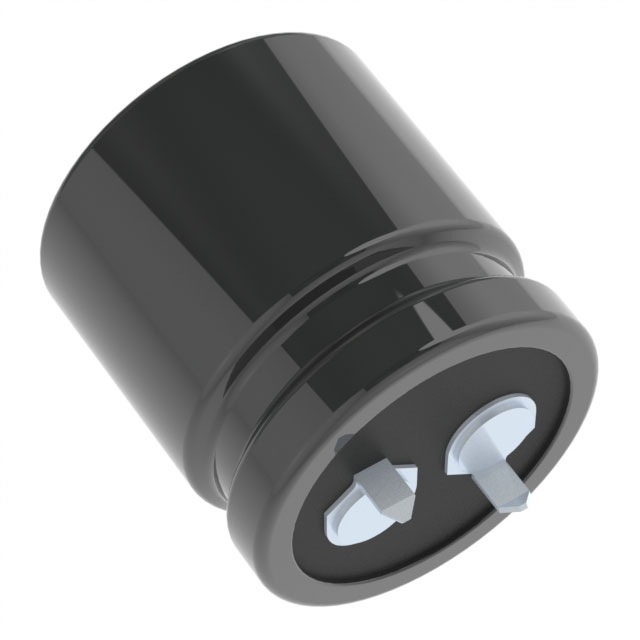

470 µF 160 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 7000 Hrs @ 105°C
ELXM161VSN471MP30S
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | LXM |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.39 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.085 A @ 50 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ELXM161VSN471MQ25S | ELXM161VSN102MQ45S | ELXM161VSN102MR35S | ELXM161VSN122MA30S |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | CAP ALUM 470UF 20% 160V SNAP TH | CAP ALUM 1000UF 20% 160V SNAP TH | CAP ALUM 1000UF 20% 160V SNAP TH | CAP ALUM 1200UF 20% 160V SNAP TH |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
