Product CatalogPart Number
EM252512
Manufacturer
Eaton - Electronics DivisionDescription
TERM BLOCK PLUG 12POS STR 5MM
Datasheet
DatasheetPackage
-
In Stock
32,841 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EM252512
EM252512
lmages are for reference only.Payment Methods
Delivery Services
12 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
Quick Inquiry
EM252512
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | Eaton - Electronics Division |
| Series | Euro-Mag EM2525 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Type | Plug, Female Sockets |
| Number of Positions | 12 |
| Positions Per Level | 12 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw - Rising Cage Clamp |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | - |
| Color | Green |
| Operating Temperature | -40°C ~ 105°C |
| Contact Mating Finish | Tin |
| Features | Retention Latches (Non-Wire Side) |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | M3 |
| Torque - Screw | 0.79 Nm (7.0 Lb-In) |
| Wire Strip Length | - |
| Contact Material | Brass |
| Housing Material | Thermoplastic |
| Contact Tail Length | - |
| Insulation Height | 0.570" (14.48mm) |
| Current - UL | 16 A |
| Voltage - UL | 300 V |
Parts with Similar Specifications
| Product Attribute | |
|
|
|
| Part Number | EM252511 | EM252513 | EM252514 | EM252515 |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | TERM BLOCK PLUG 11POS STR 5MM | TERM BLOCK PLUG 13POS STR 5MM | TERM BLOCK PLUG 14POS STR 5MM | TERM BLOCK PLUG 15POS STR 5MM |
| Series | Euro-Mag EM2525 | Euro-Mag EM2525 | Euro-Mag EM2525 | Euro-Mag EM2525 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
EM252502
Eaton - Electronics Division

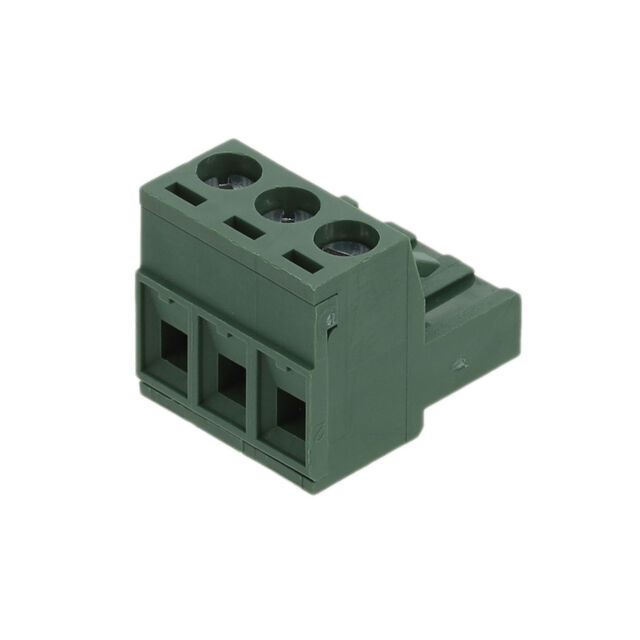

EM252503
Eaton - Electronics Division
EM252504
Eaton - Electronics Division
EM252505-BKL1
Eaton - Electronics Division

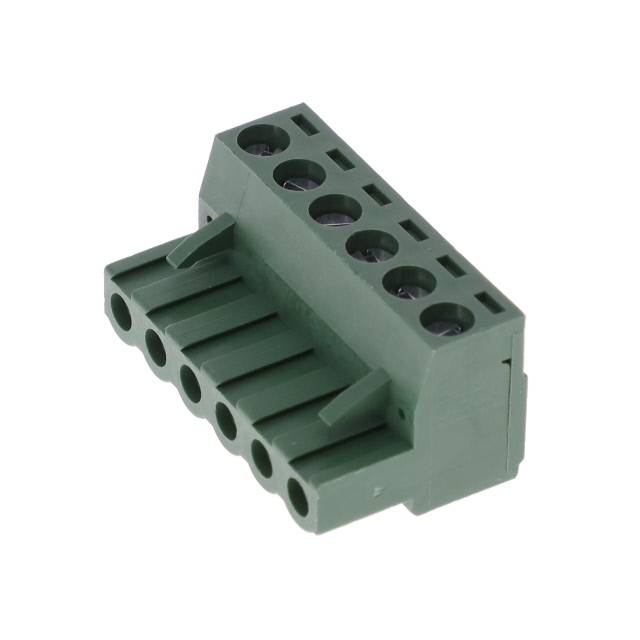

EM252506
