Product CatalogPart Number
EM279511H
Manufacturer
Eaton - Electronics DivisionDescription
EUROMAG EM2795 SERIES 11 POLE
Datasheet
DatasheetPackage
-
In Stock
14,227 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EM279511H
EM279511H
lmages are for reference only.Payment Methods
Delivery Services
11 Position Wire to Board Terminal Block Vertical with Board Through Hole
Quick Inquiry
EM279511H
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Wire to Board |
| Manufacturer | Eaton - Electronics Division |
| Series | Euro-Mag EM2795 |
| Packaging | Bulk |
| RoHS Status | |
| Number of Levels | 1 |
| Positions Per Level | 11 |
| Pitch | - |
| Mating Orientation | Vertical with Board |
| Current | 10 A |
| Voltage | 300 V |
| Wire Gauge | 14-24 AWG |
| Mounting Type | Through Hole |
| Wire Termination | Screwless - Push Button Clamp |
| Features | - |
| Color | Green |
| Operating Temperature | -40°C ~ 105°C |
| Housing Material | Thermoplastic |
| Contact Material - Plating | Brass - Tin Plated |
| Clamp Material - Plating | - |
| Screw Material - Plating | - |
| Torque - Screw | - |
| Screw Thread | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |

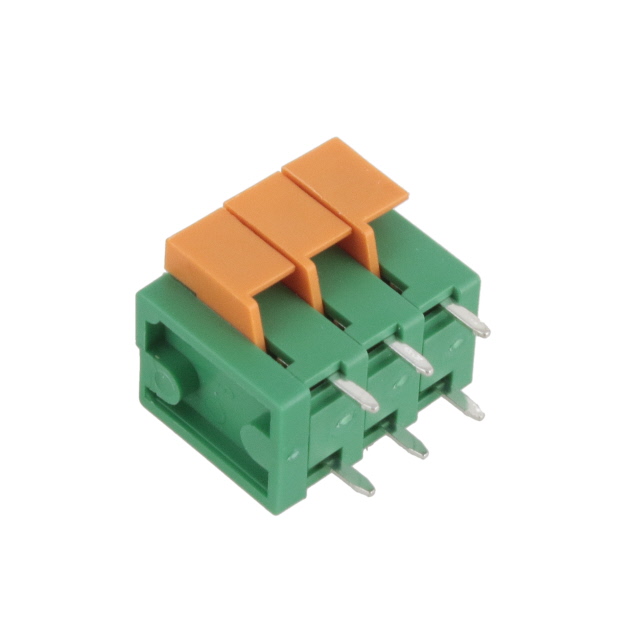

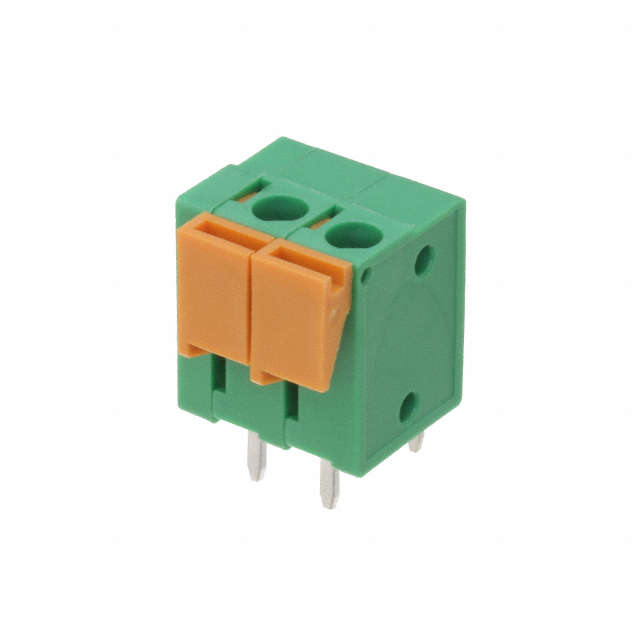

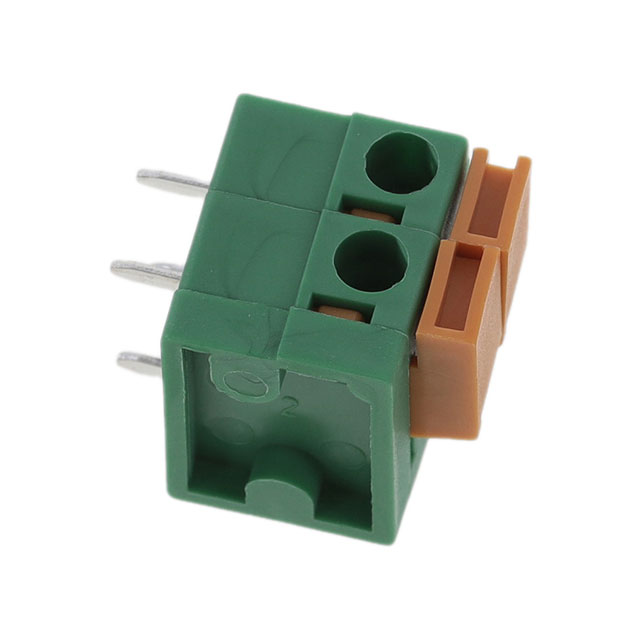

| Part Number | EM279511V | EM279502H | EM279502V | EM279503H |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | EUROMAG EM2795 SERIES 11 POLE | TERM BLK 2POS TOP ENT 5.08MM PCB | EUROMAG EM2795 SERIES 02 POLE | TERM BLK 3POS TOP ENT 5.08MM PCB |
| Series | Euro-Mag EM2795 | Euro-Mag EM2795 | Euro-Mag EM2795 | Euro-Mag EM2795 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
