EMDF101W334M1GV001E
lmages are for reference only.EMDF101W334M1GV001E
CAP CER 0.33UF 100V X7R 1210
Datasheet1210 (3225 Metric)
14,733 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.33 µF ±20% 100V Ceramic Capacitor X7R 1210 (3225 Metric)
EMDF101W334M1GV001E
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Dielectrics Inc. |
| Series | X2Y® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100V |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | Low ESL (X2Y) |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1210 (3225 Metric) |
| Size / Dimension | 0.125" L x 0.098" W (3.18mm x 2.49mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.070" (1.78mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

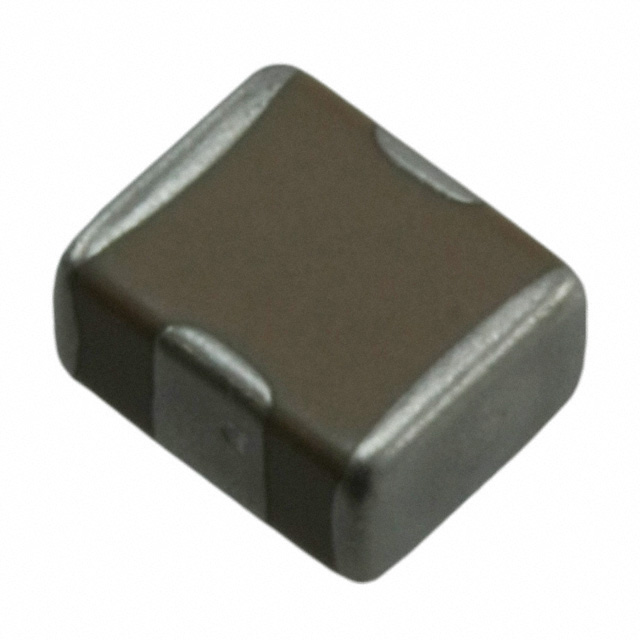

| Part Number | EMDF101W104M1GV001E | EMDF101W224M1GV001E | EMDF160W105M1GV001E | EMDF500W224M1GV001E |
| Manufacturer | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 0.1UF 100V X7R 1210 | CAP CER 0.22UF 100V X7R 1210 | CAP CER 1UF 16V X7R 1210 | CAP CER 0.22UF 50V X7R 1210 |
| Series | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
