Product CatalogPart Number
EP1101-9RKG
Manufacturer
Bel Power SolutionsDescription
DC/DC CONVERTER 3.3V 66W
Datasheet
DatasheetPackage
-
In Stock
11,548 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EP1101-9RKG
EP1101-9RKG
lmages are for reference only.Payment Methods
Delivery Services
Enclosed, Conformal Coated DC DC Converter 1 Output 3.3V 20A 150V Input
Quick Inquiry
EP1101-9RKG
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - DC DC Converters - |
| Manufacturer | Bel Power Solutions |
| Series | Melcher P (90 ~ 192W) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Enclosed, Conformal Coated |
| Voltage - Input (Min) | 67.2V |
| Voltage - Input (Max) | 150V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 66W |
| Voltage - Isolation | 4.2 kV |
| Applications | ITE (Commercial), Railway |
| Efficiency | 83.4% |
| Operating Temperature | -40°C ~ 71°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.46" L x 4.37" W x 0.78" H (164.0mm x 111.0mm x 19.8mm) |
| Approval Agency | CE, CSAus, NEMKO |
| Standard Number | - |
| Base Product Number | EP1101 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

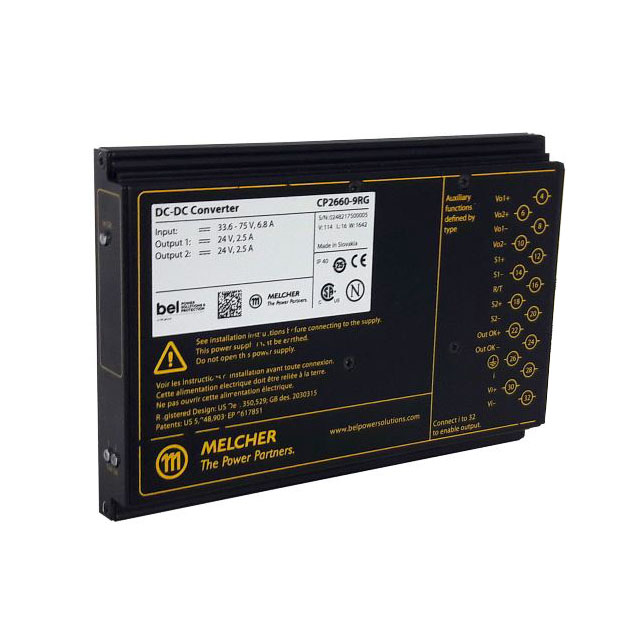

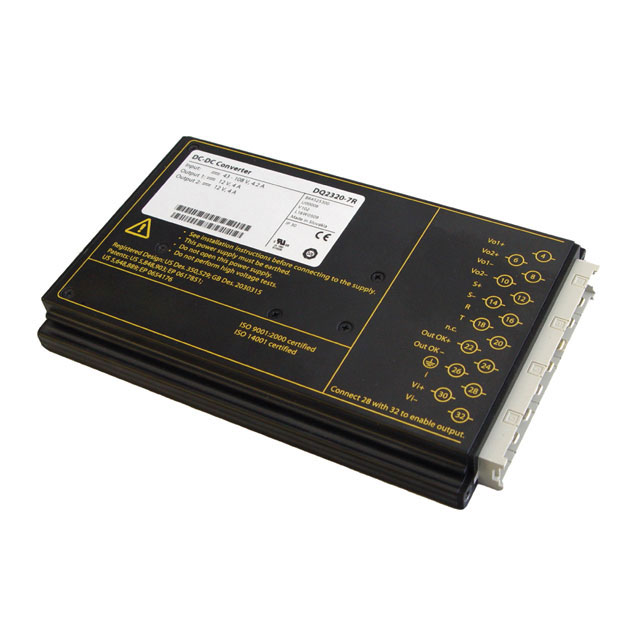

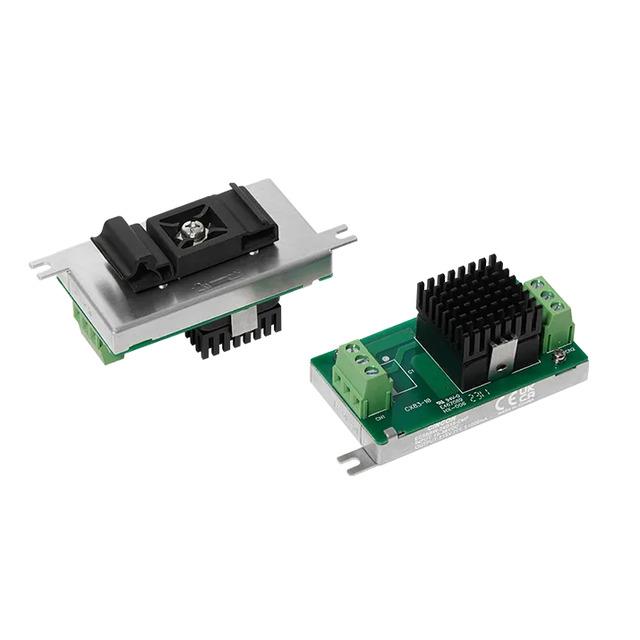

| Part Number | EP1101-7R | EC7AW18-72S05-ECRTP | EQ2320-9RG | EC5SBW-24D12-CMF |
| Manufacturer | Bel Power Solutions | Cincon Electronics Co. LTD | Bel Power Solutions | Cincon Electronics Co. LTD |
| RoHS Status | RoHS non-compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC/DC CONVERTER 3.3V 132W | 10W ENCLOSED CHASSIS MOUNT DC-DC | DC/DC CONVERTER 2X12V 120W | PWR SUPP, BATT & COND |
| Series | Melcher P (90 ~ 192W) | EC7AW18 (10W) | Melcher Q (66 ~ 132W) | EC5SBW-CMF (30W) |
| Packaging | Box | Bulk | Bulk |
