ERA-3APB392V

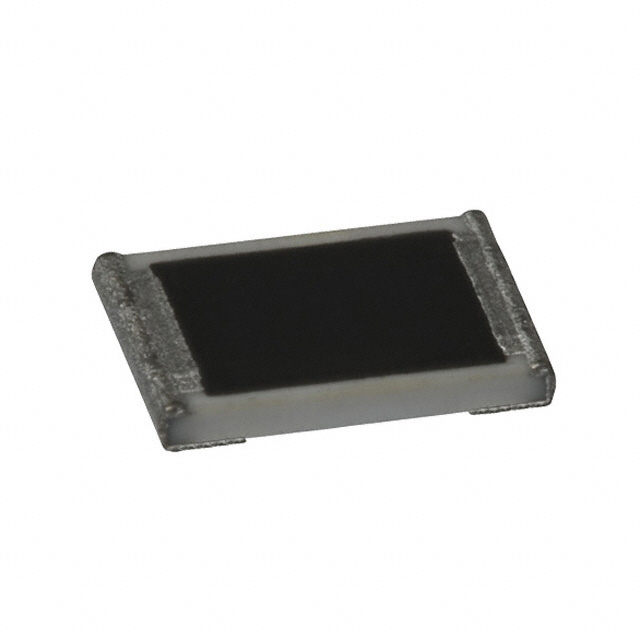

lmages are for reference only.ERA-3APB392V
RES SMD 3.9K OHM 0.1% 1/10W 0603
Datasheet0603 (1608 Metric)
86,289 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.9 kOhms ±0.1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Automotive AEC-Q200 Thin Film
ERA-3APB392V
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Panasonic Electronic Components |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Panasonic Electronic Components |
| Series | ERA-3A |
| Resistance | 3.9 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.1W, 1/10W |
| Composition | Thin Film |
| Features | Automotive AEC-Q200 |
| Temperature Coefficient | ±15ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | ERA-3APB |
| Product Attribute |  |
 |
 |
 |
| Part Number | ERA-3APB302V | ERA-3APB303V | ERA-3APB332V | ERA-3APB333V |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES SMD 3K OHM 0.1% 1/10W 0603 | RES SMD 30K OHM 0.1% 1/10W 0603 | RES SMD 3.3K OHM 0.1% 1/10W 0603 | RES SMD 33K OHM 0.1% 1/10W 0603 |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
